BatteryEVO 48V BADGER 47Ah 2.1 kWh

Original price was: $787.00.Current price is: $584.10.

-

Suitable for

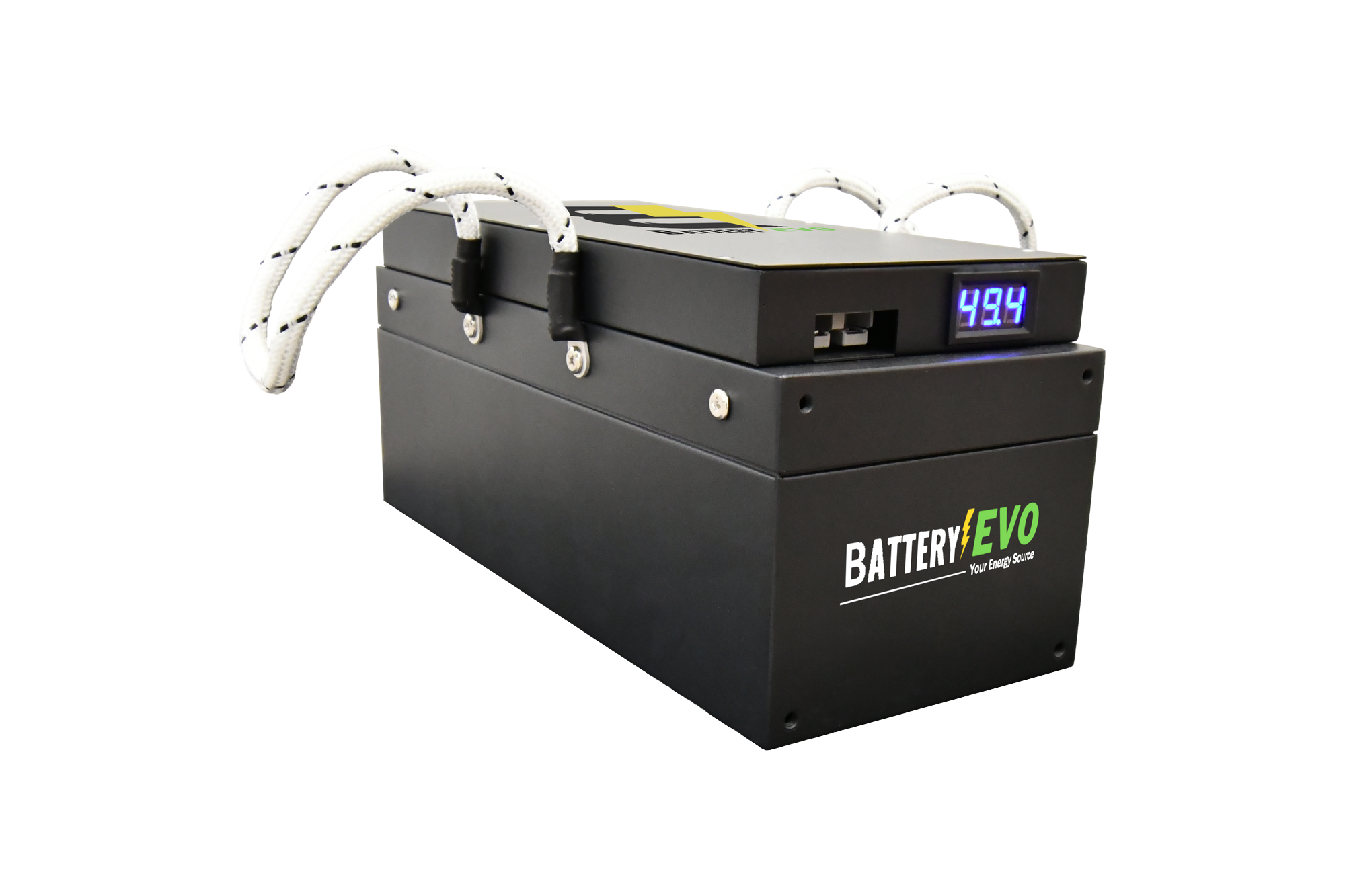

    The BatteryEVO 48V 2.1 kWh NMC BADGER Battery

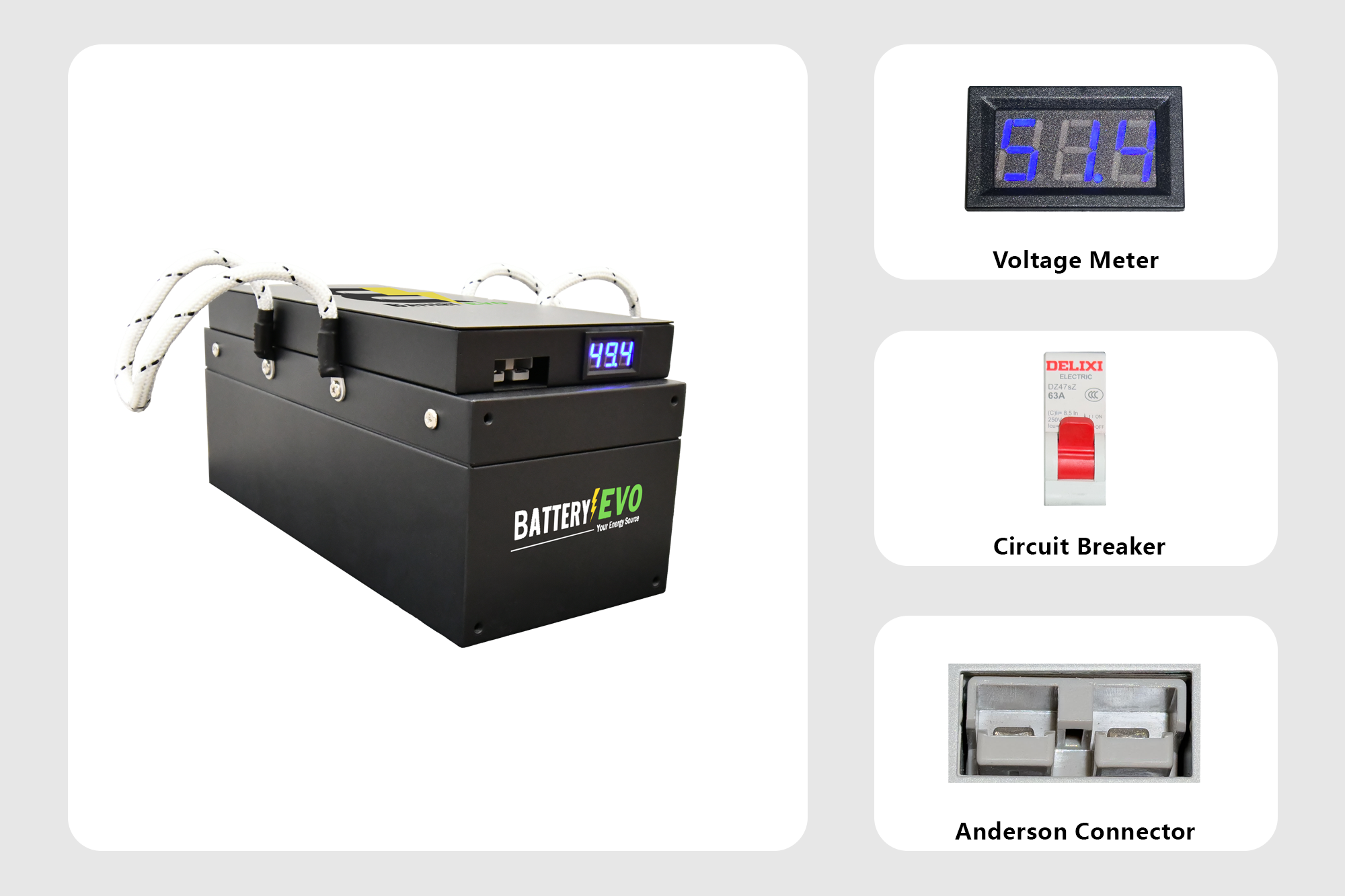

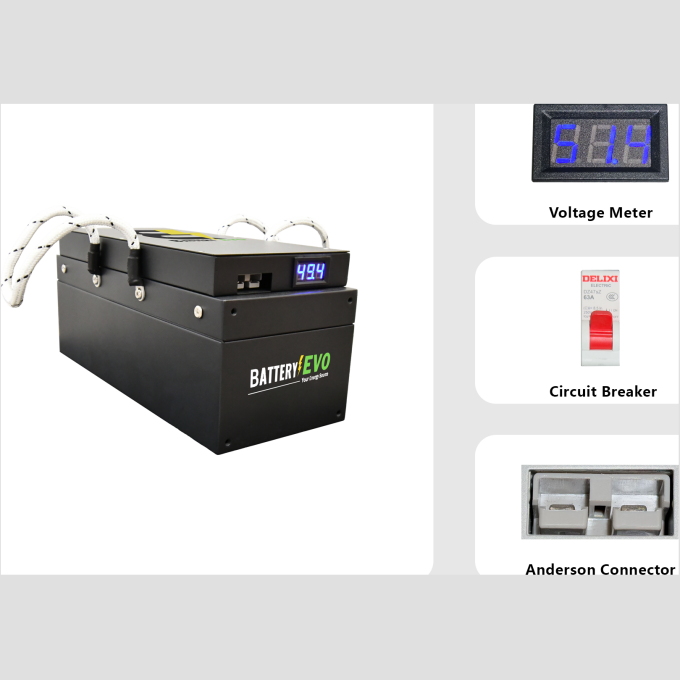

    Introducing our latest innovation, the most compact golf cart solution we’ve created! Don’t be fooled by its small size; the BADGER delivers strong reliability, efficiency, and a significant capacity to power your cart. Equipped with high-quality lithium-ion cells, a 63A Safety Breaker, and our advanced BMS with Thermal Management System and comprehensive safeguards, the BADGER has the confidence to easily replace – and even outperform – any 48V lead-acid alternative.

    Surprisingly lightweight at only 36 lbs/kWh and priced the lowest, the BADGER is the lightest and most cost-effective 48V lithium golf cart solution available today. With a 2C Discharge Rate and the ability to handle high discharge currents, the BADGER ensures your battery system is used efficiently. Take your cart to the next level with the BADGER!

    Please Note: A single BADGER battery isn’t enough to power a golf cart by itself. The individual BADGER battery is designed for various power enhancements offered by the BADGER Kit. To find the right battery kit, compare the Continuous Power specifications of the BADGER kits with your motor and controller. Using the battery beyond the specified limits will void the warranty.

    Specification


    System Voltage: 48V
    Nominal Voltage: 44.2V
    Chemistry: NMC
    kWh Capacity: 2.1kWh
    Ah Capacity: 47Ah
    Charging Voltage: 49.8V – 50.4V
    Max Charge Voltage: 50.4V
    Operating Voltage Range: 36V – 50.4V
    Suggested Low Voltage Cutoff: 36V – 44V
    Cell Configuration: 12S1P
    Max Continuous Discharge Current: 60A
    Max Continuous Power: 2650W
    Max Discharge Peak Current: 120A (Over 6 seconds)
    Max Charge Current: 60A
    Charge Temperature Range: -20°C (-4°F) / 55°C (131°F)
    Discharge Temperature Range: -20°C (-4°F) / 55°C (131°F)
    Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
    Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
    Weight: 36lbs (16.3kg)

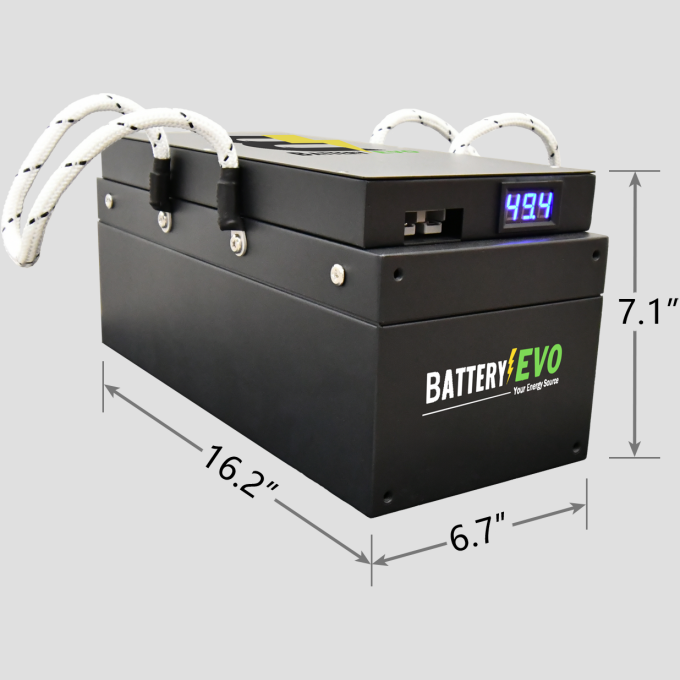

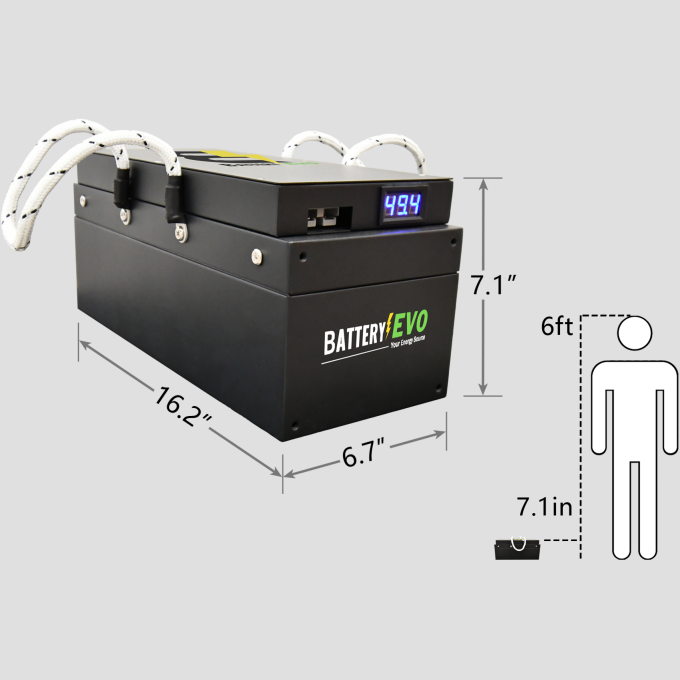

    Depth: 16.2in (411.5mm)
    Width: 6.7in (170.2mm)

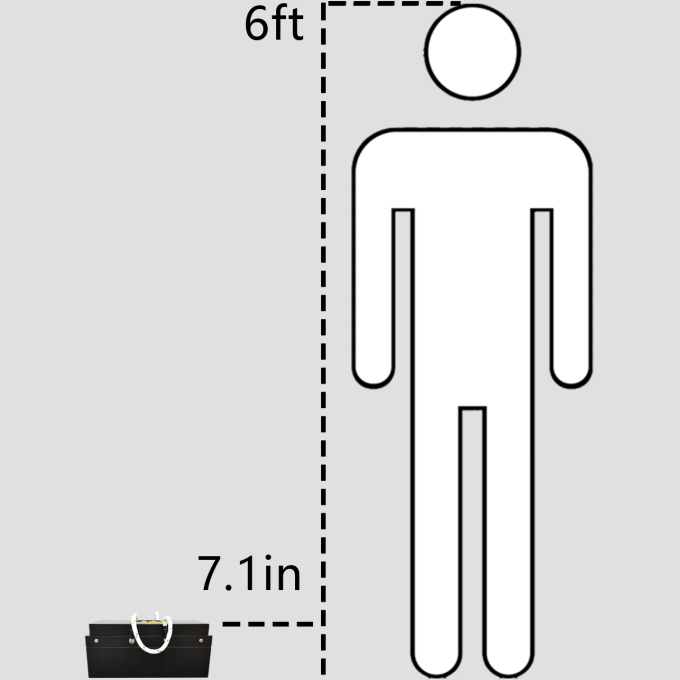

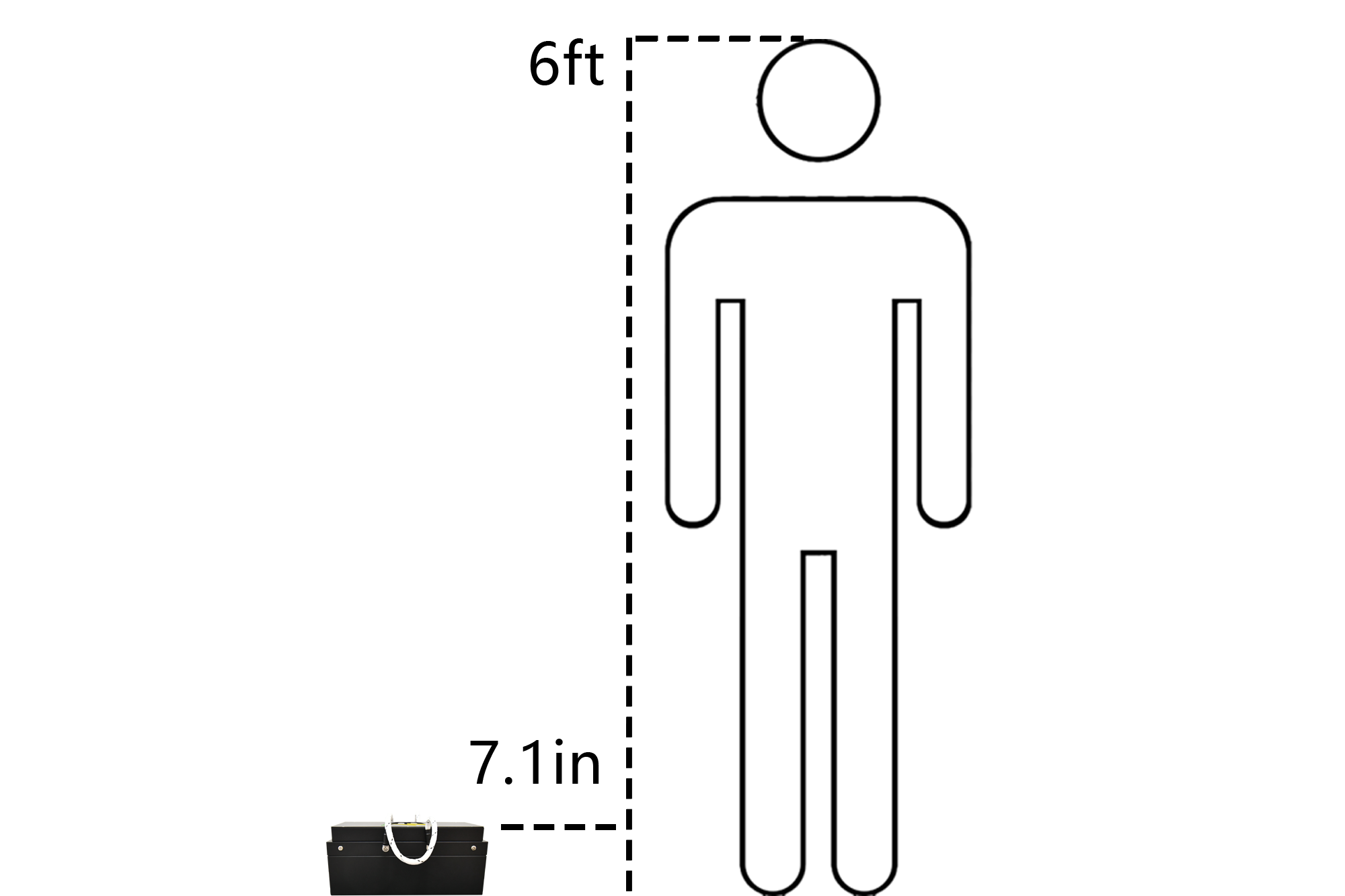

    Height: 7.1in (180.3mm)
    Safety Features: Breaker (63A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
    Max Connections: Up To (8) Parallel

    Resources & Download

    Battery Spec Sheet: View
