BatteryEVO 48V ELITE MAX 368Ah 19kWh

Original price was: $5,999.00.Current price is: $4,409.10.

Suitable for

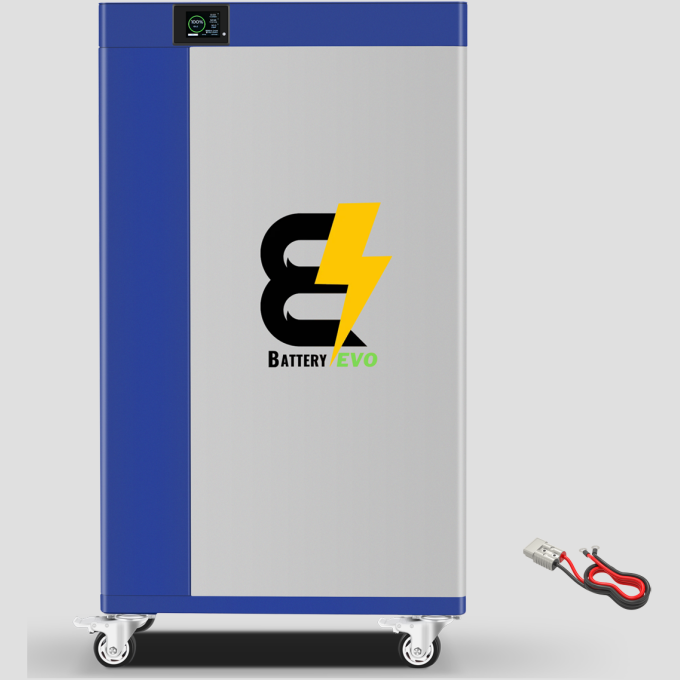

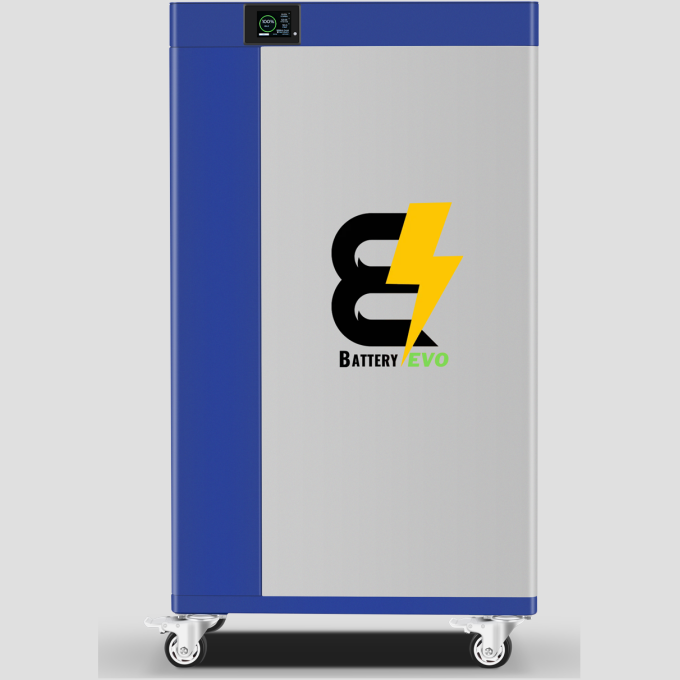

The BatteryEVO 48V 19 kWh LiFePO4 KONG Elite Max Battery

For those venturing into creating an extensive solar or off-grid power system, the KONG Elite Max is the ultimate choice, equipped with all the essential elements.

The KONG Elite Max features our advanced BMS, extending its performance across a wide temperature range to cater to winter conditions. With pristine LiFePO4 cells and sturdy caster wheels, the KONG Elite Max offers seamless storage adaptability, allowing you to place it wherever you need.

Setting a new standard for BMS protections in its category, this unit ensures uninterrupted power supply while maintaining the highest safety standards. An integrated LED Smart Display lets you monitor battery health and status in real-time. Enhance your home and MAX out your power by obtaining the KONG Elite Max today!

Specification


System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LFP
kWh Capacity: 19kWh
Ah Capacity: 368Ah
Charging Voltage: 55.2V – 58.4V
Max Charge Voltage: 58.8V
Operating Voltage Range: 44.8V – 58.4V
Suggested Low Voltage Cutoff: 44.8V – 50.8V
Cell Configuration: 16S2P
Max Continuous Discharge Current: 175A
Max Continuous Power: 8960W
Max Discharge Peak Current: 300A (5 seconds)
Max Charge Current: 150A
Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
Discharge Temperature Range: -20°C (-4°F) / 55°C (131°F)
Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight: 600lbs (272.2kg)

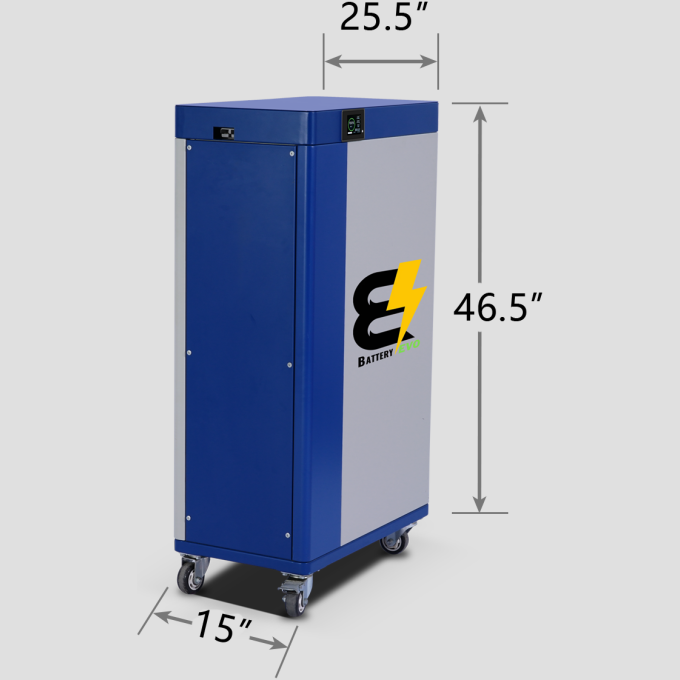

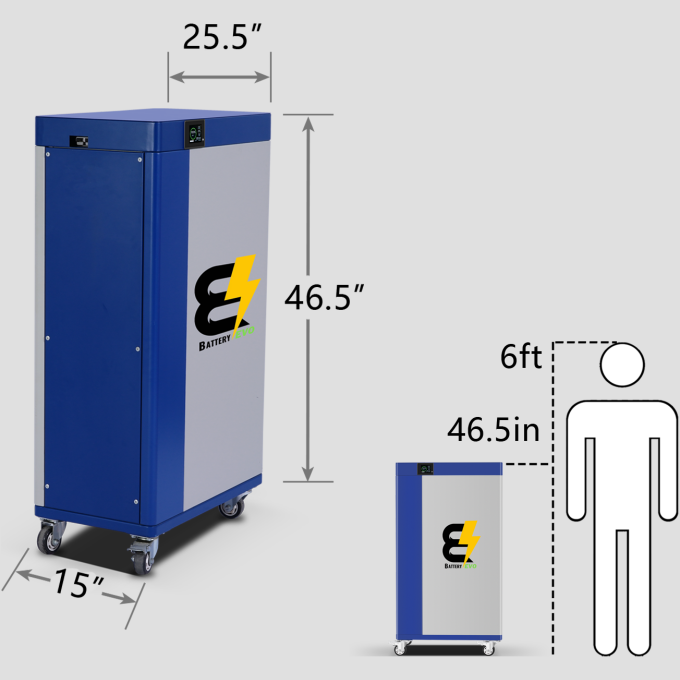

Depth: 15in (381mm)
Width: 25.5in (647.7mm)

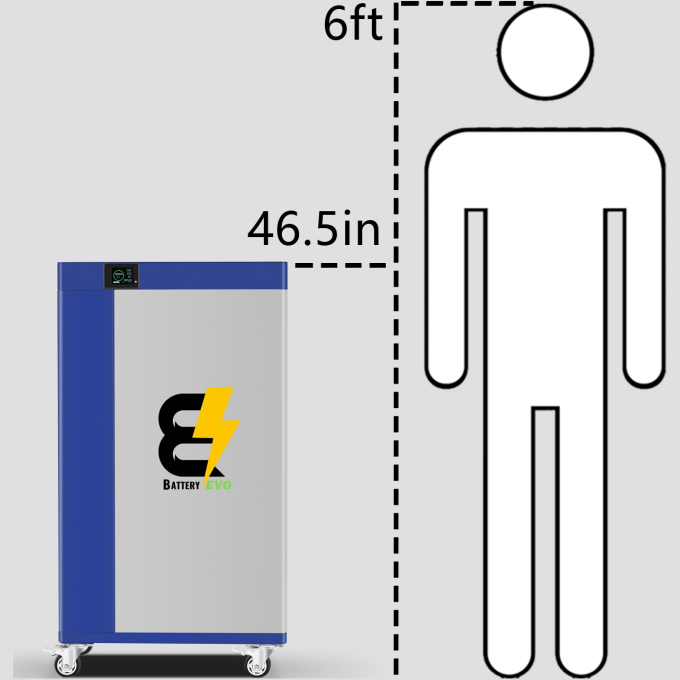

Height: 46.5in (1181.1mm)
Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
Max Connections: Up To (8) Parallel

Resources & Download

Battery Spec Sheet: View

F&Q
















SKU: EVO-KONG-48190-G1 Category:
