BatteryEVO 48V MUSTANG 140Ah 7 kWh

Original price was: $3,299.00.Current price is: $1,499.00.

-

Suitable for

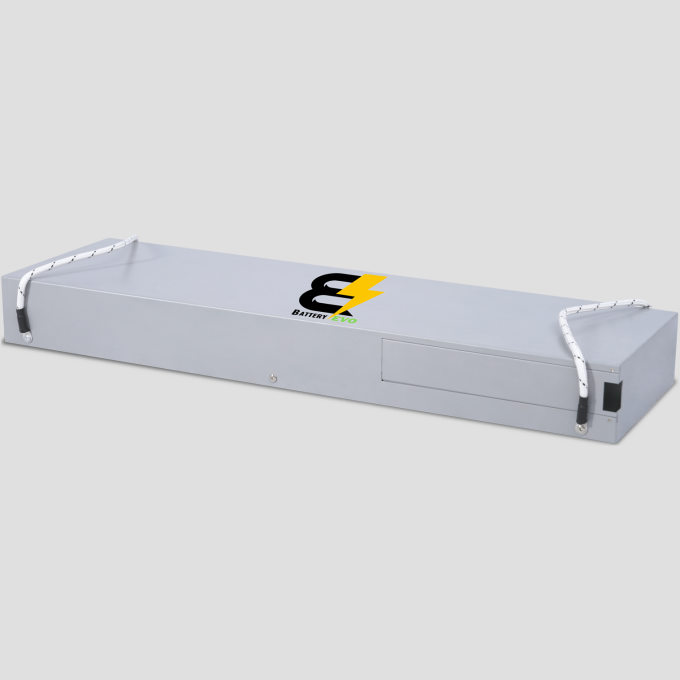

    The BatteryEVO 48V LiFePO4 7 kWh MUSTANG Battery

    An advanced LiFePO4 solution designed to enhance your off-grid, emergency, or even worksite power supply. Whether you want to simply upgrade your power system or equip yourself with a battery for backup energy, the MUSTANG is the perfect choice.

    With impressive energy density, the MUSTANG is one of our top models, fitting 7kWh in a sleek steel casing. It’s carefully designed to make the most of your power system, accommodating various demands no matter where you’re headed.

    But the MUSTANG isn’t just about power. It’s also about safety and reliability, giving you peace of mind on your journeys. Using Grade A Razor cells – known as the safest lithium cells – the MUSTANG can handle punctures without emitting fumes or catching fire. And that’s not all. The battery has our special Beyond BMS, an advanced battery management system with triple safety redundancy. It includes protections like Short Circuit, Over Current, Over/Under Voltage, and Over/Under Temperature safeguards.

    The MUSTANG ensures reliable, high-capacity power storage. Embrace the future of LiFePO4 battery power with the all-new 48V MUSTANG!

    Specification


    System Voltage: 48V
    Nominal Voltage: 51.2V
    Chemistry: LFP
    kWh Capacity: 7 kWh
    Ah Capacity: 140Ah
    Charging Voltage: 55.2V – 58.4V
    Max Charge Voltage: 58.8V
    Operating Voltage Range: 44.8V – 58.4V
    Suggested Low Voltage Cutoff: 44.8V – 50.8V
    Cell Configuration: 16S1P
    Max Continuous Discharge Current: 150 A
    Max Continuous Power: 7680 W
    Max Discharge Peak Current: 300 A (5 seconds)
    Max Charge Current: 150 A
    Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
    Discharge Temperature Range: -20°C (-4°F) / 55°C (131°F)
    Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
    Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
    Weight: 146lbs (66.2kg)
    Depth: 39.9in (1013.5mm)
    Width: 11.6in (294.6mm)
    Height: 4.4in (111.8mm)
    Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
    Max Connections: Up To (8) Parallel

    Resources & Download

    Battery Spec Sheet: View

    FAQ's
















    SKU: EVO-MSTG-48070-G1 Category:
