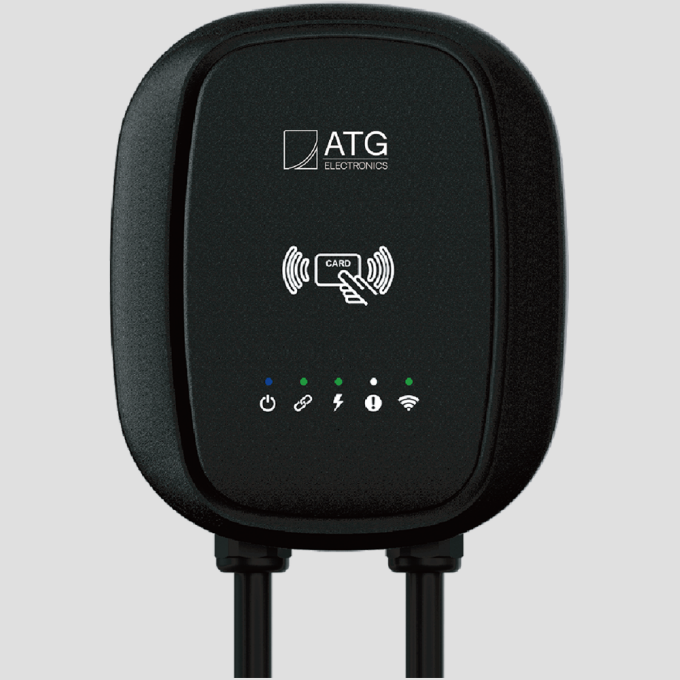

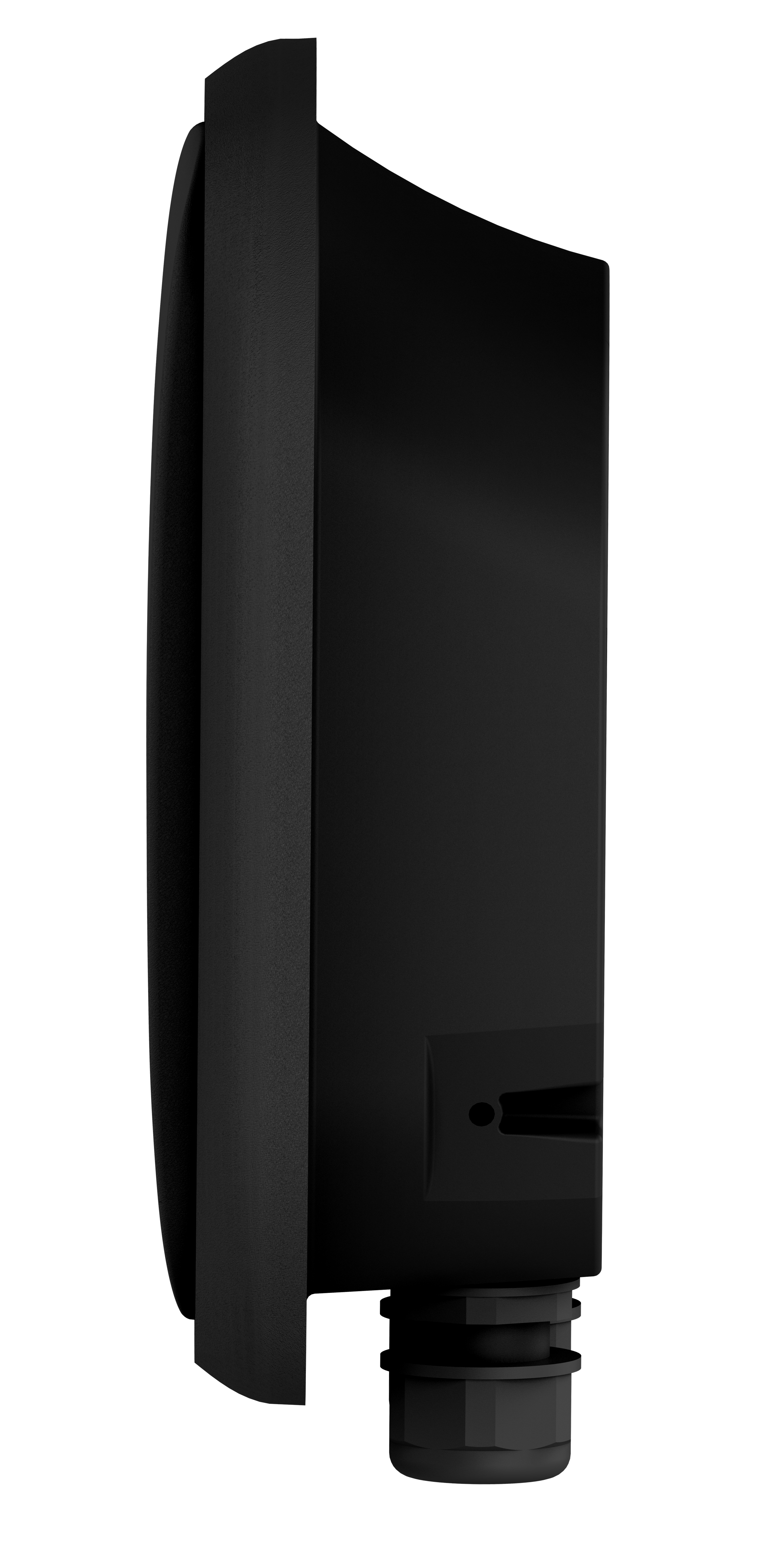

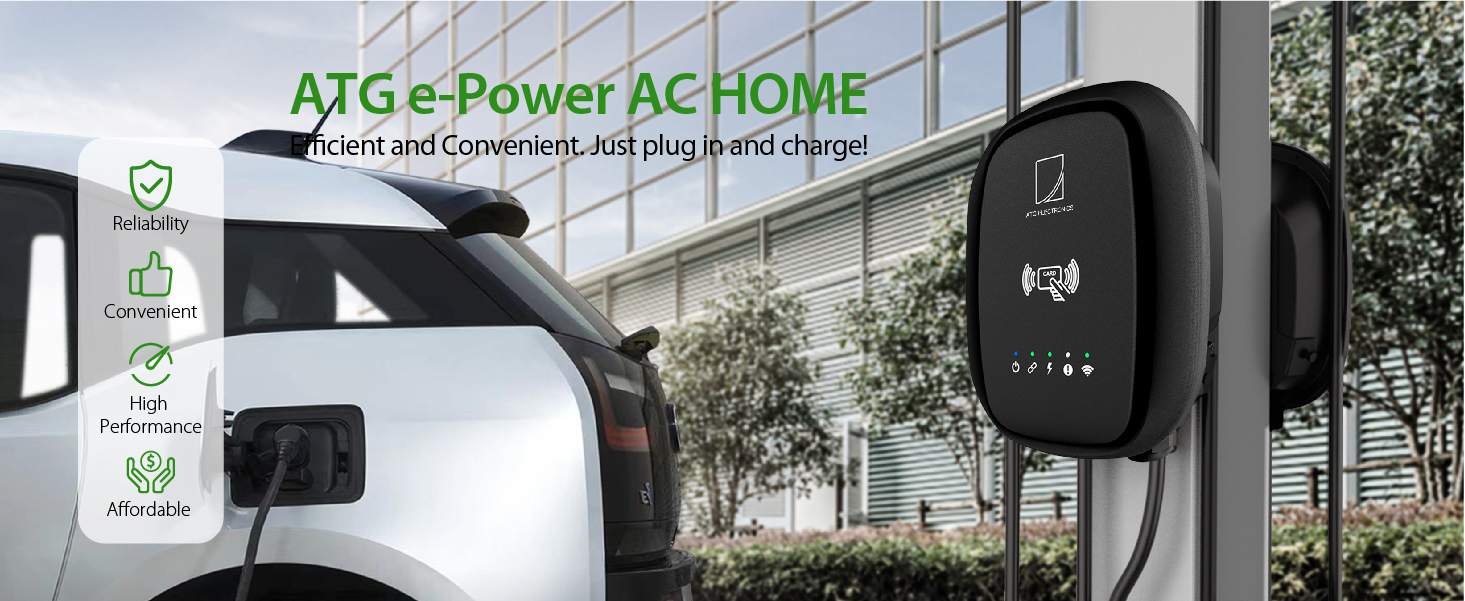

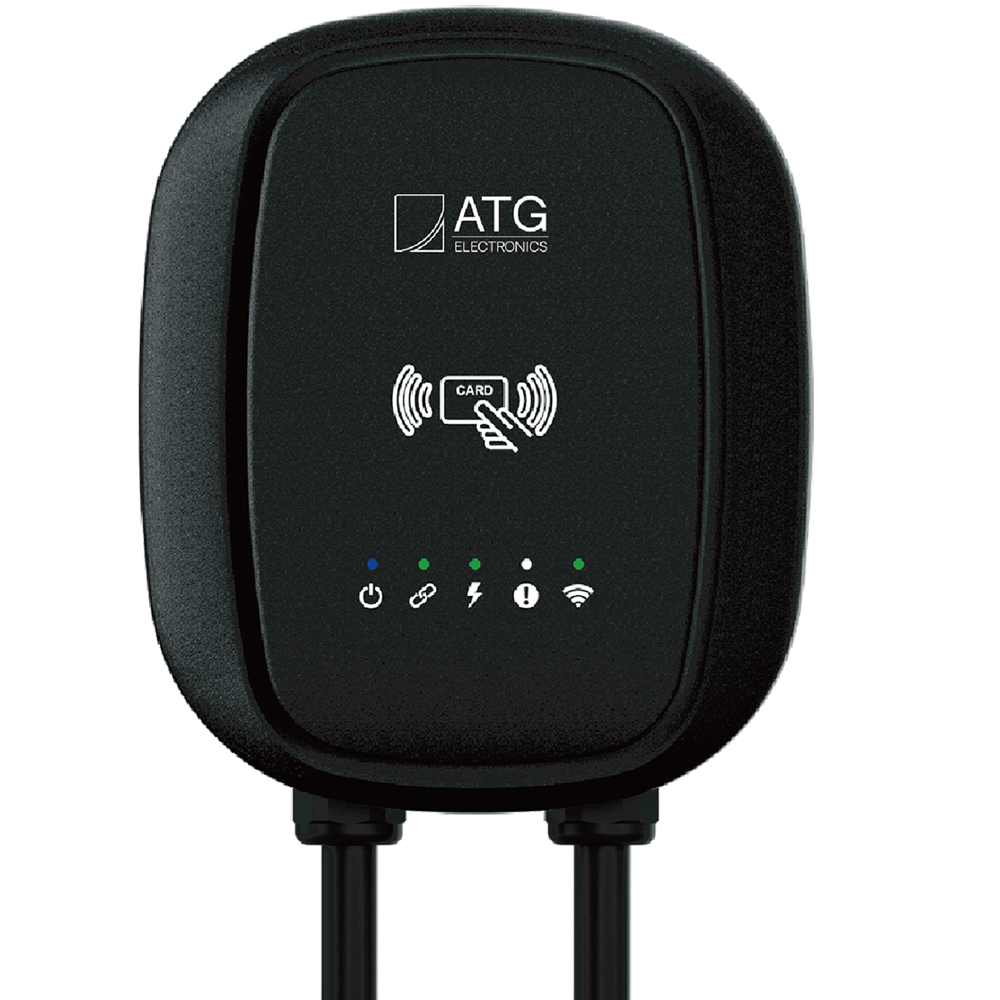

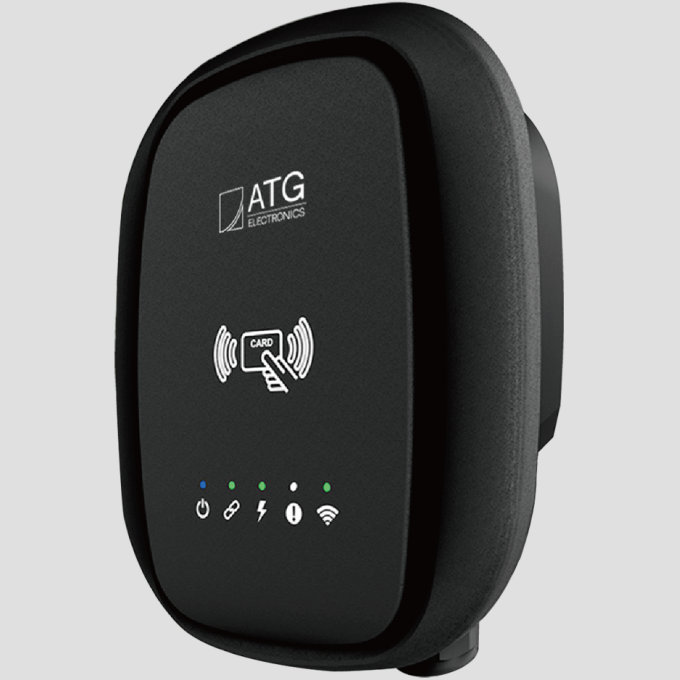

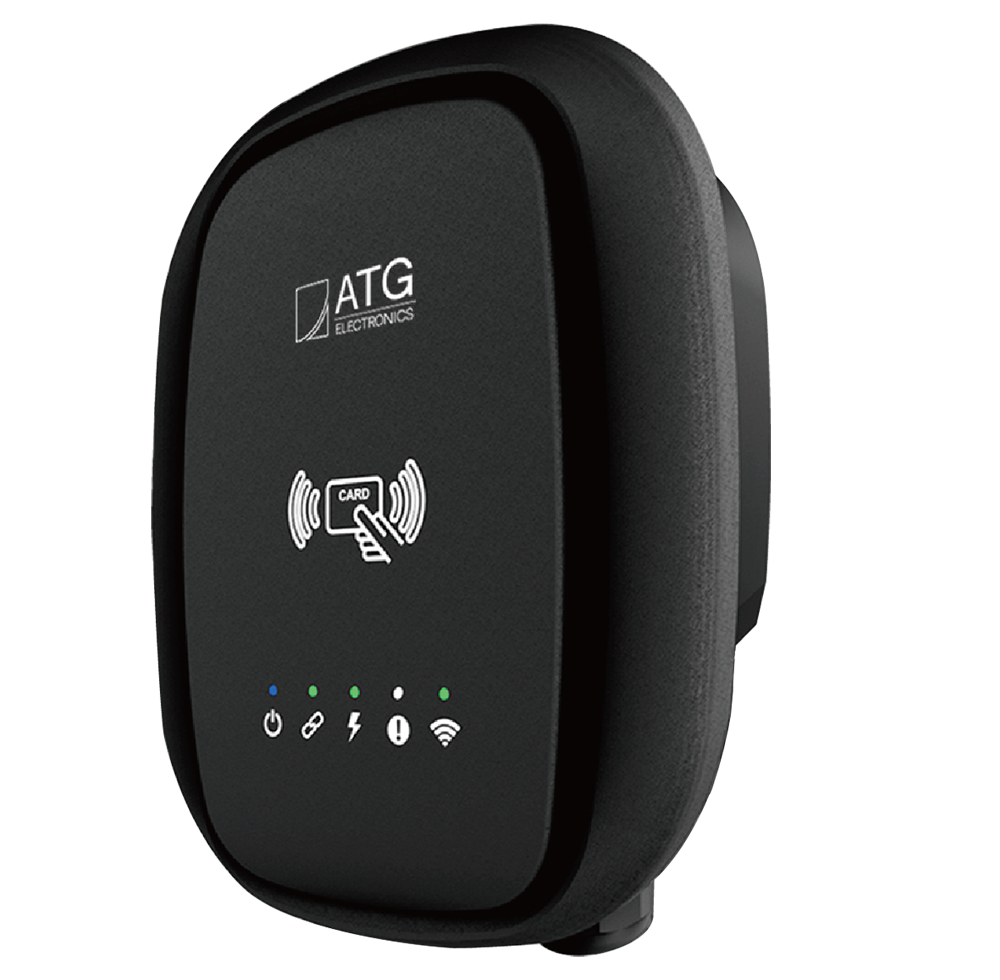

ATG Epower Commercial EV Charger, 40 Amp 9.6 kW at 240 VAC

Original price was: $946.40.Current price is: $669.00.

-

Wi-Fi & Bluetooth-enabled smart EV charging station (Level 2 EVSE) with 18-foot cable

Key Features

  • Unlock a seamless and trustworthy charging experience with ISO15118 & CTEP certification
  • Experience a user-friendly charging process with the illuminating dynamic LEDlight and a crystal-clear 4.3-inc
  • Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
  • OCPP 1.6J compatibility with upgradable to OCPP 2.0.1
  • Dynamic load managementī‚ˇMake a payment for charging by scanning the QR code with credit card, or redirect to the mobile app for login and processing
  • Precision measurement of power, energy, voltage & current.
  • Dynamic LED lights display Wi-Fi connectivity and charging behavior
  • IK10 impaction resistant rating and tamper proof screws.
  • Weatherproof, dust-tight, polycarbonate casing
  • 5-Year warranty

    Commercial EV Charger Certification of conformity 5 LED indicators Rigorously tested, high-quality materials Cloud services & smart load management Charging power, easy of use, installation, universal compatibility, smart connected, onboard intelligence multiple safety protections

    Specifications



    Electrical Characteristics:
    • Safety Rated: 40A Max
    • Single phase input: nominal voltage 208-240 VAC~ 60 Hz
    • Power: 7.6 kW at 240 VAC
    Input Cable:  Hardwired 2.6ft/0.8m cable
    Output Cable & Connector:
    • 18ft/5.5m cable
    • SAE J1772 standard compliant
    APP:
    • Precision measurement of power, energy, voltage & current.
    • Automated notiīŦcations: time-of-use in eīŦ€ect, start of charge, end of charge, unit oīŦ„ine, unit back online, car not plugged in by a set time.
    Smart Grid Connectivity:  Built-in Wi-Fi connectivity (802.11b/g/n2.4GHz)
    Firmware:  Over-the-air(OTA) upgradeable īŦrmware
    Emissions Reduction Available via optional software upgrade
    Enclosure:

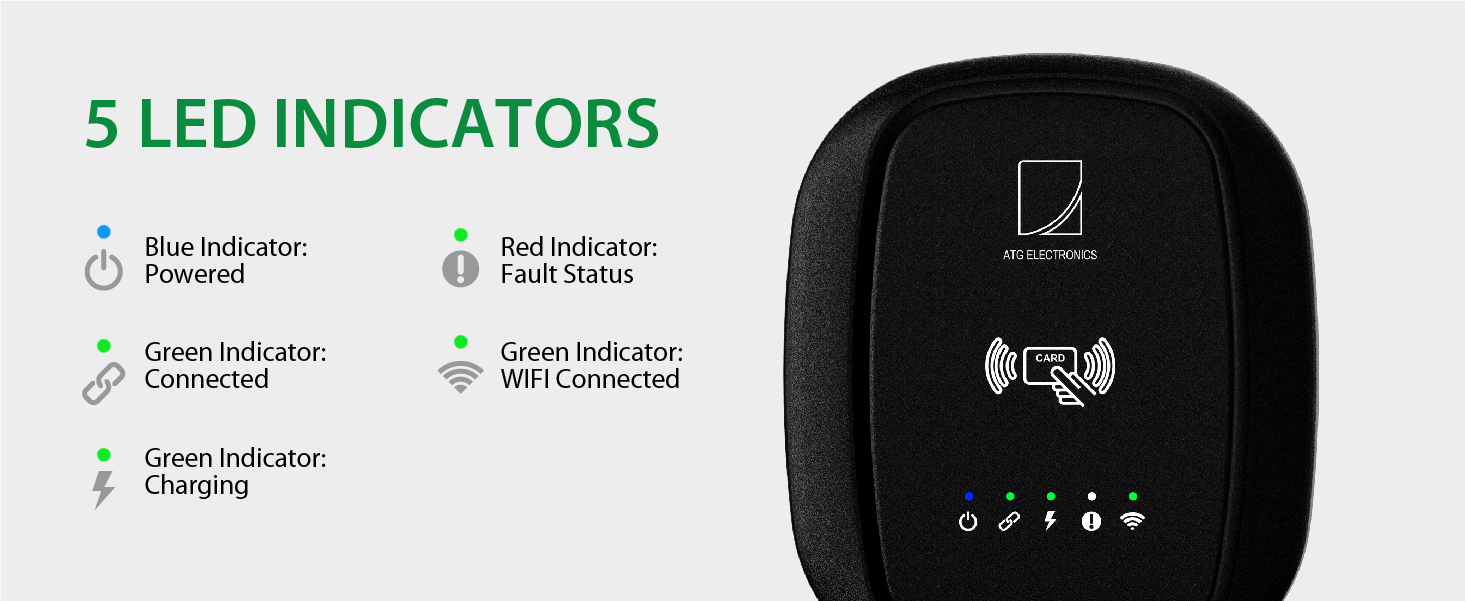

    • Dynamic LED lights show charging status: standby, CP connectivity, charging in progress, fault indicator, network connectivity
    • NEMA Enclosure Type4: Weatherproof, dust-tight
    • IK10: Resistant polycarbonate case
    • Quick-release wall mounting bracket included
    • Operating Temperature: -22°F to 122°F (-30°C to 50°C)

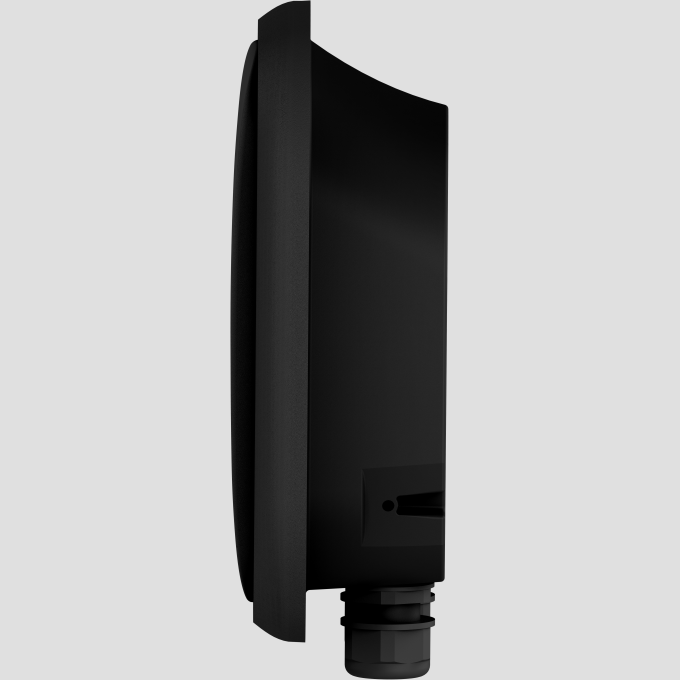

    Dimensions: Main enclosure: 12.3inx10.2inx4.1inch (313mmx260mmx105mm)
    Codes & Standards: NEC625 compliant, UL2594 compliant, OCPP1.6J, FCC Part 15 Class B, Energy Star
    Safety: ETL Listed
    RFID: Support
    Warranty: 5 years limited product

    Resources & Downloads

    40Amp Commercial EV Charger: Specification

    40Amp Commercial EV Charger: User Manual

    Q&A



    Q:

    What’s the hardwired?
    A:
    Hardwired units come with a standard input whip, which requires a professional electrician to permanently connect the ATG-C01 to an electrical system.

    Q:

    Where can I find the installation guide and setup instructions for Wi-Fi and the app?
    A:
    You can find the complete online manual here, which includes installation and Wi-Fi setup instructions.

    Q:

    Will ATG-C01 commercial stations work in rain and snow?
    A:
    Yes, ATG-C01 commercial stations are ruggedized for indoor and outdoor installation, even in extreme weather conditions. All ATG-C01 commercial stations meet NEMA 4X standards for durability.

    Q:

    What is smart charging?
    A:
    A smart charging station is a station that is connected to the Internet and can respond to grid signals. Smart charging allows businesses to optimize charging sessions and participate in utility programs to save electricity and reduce electric bills.

    Q:

    Is ATG-C01 safety certified?
    A:
    Yes, ATG-C01 is ETL Listed, which means it adheres to the highest safety standards for electric vehicle supply equipment.

    Q:

    Is there a warranty?
    A:
    We also offer a 5-year limited warranty on commercial charging stations. Please note that this warranty is only valid for use under normal commercial operating conditions. Using a commercial box outside of normal commercial operating conditions voids the commercial warranty.

    Q:

    Is support ISO15118 and CTEP?
    A:
    Unlock a seamless and trustworthy charging experience with ISO15118 & CTEP certification. Trust in accurate and transparent metering while enjoying hassle-free Plug & Charge convenience
