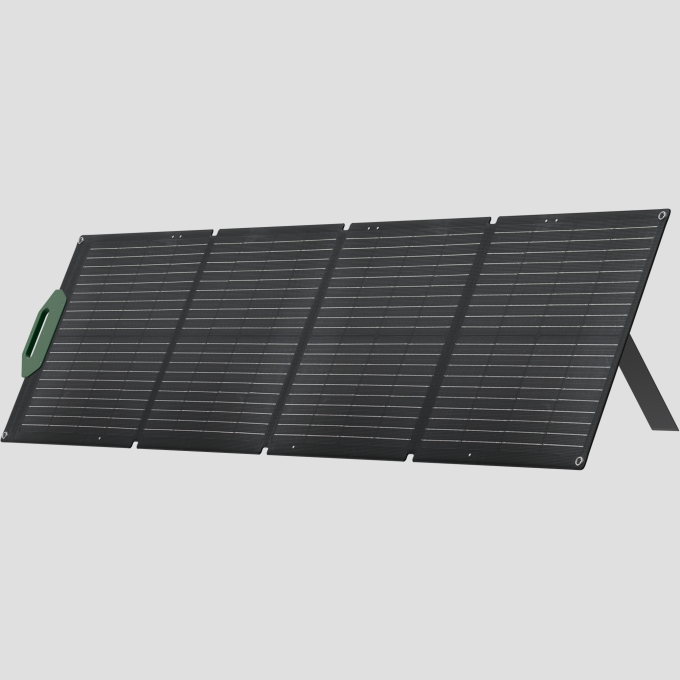

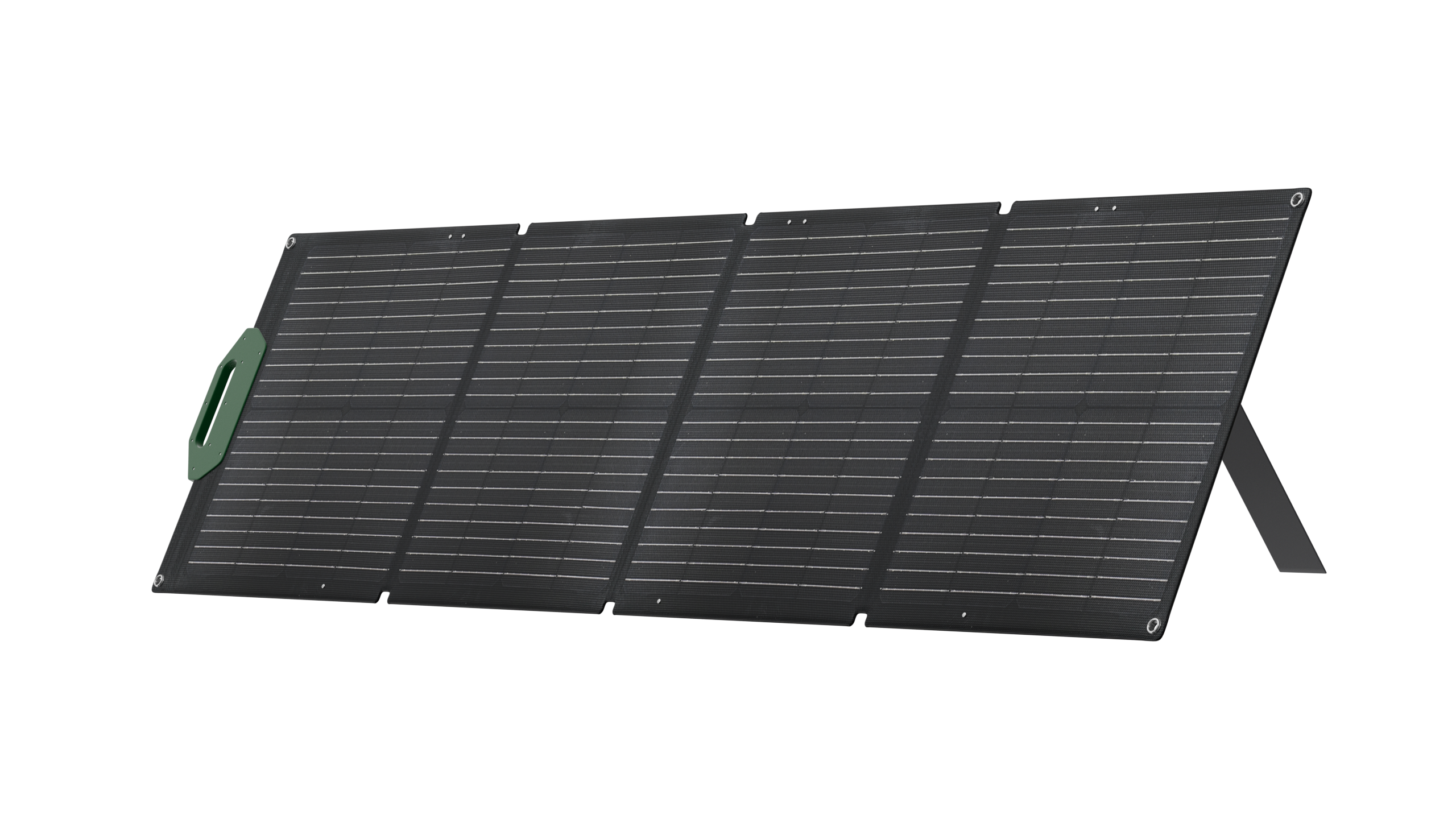

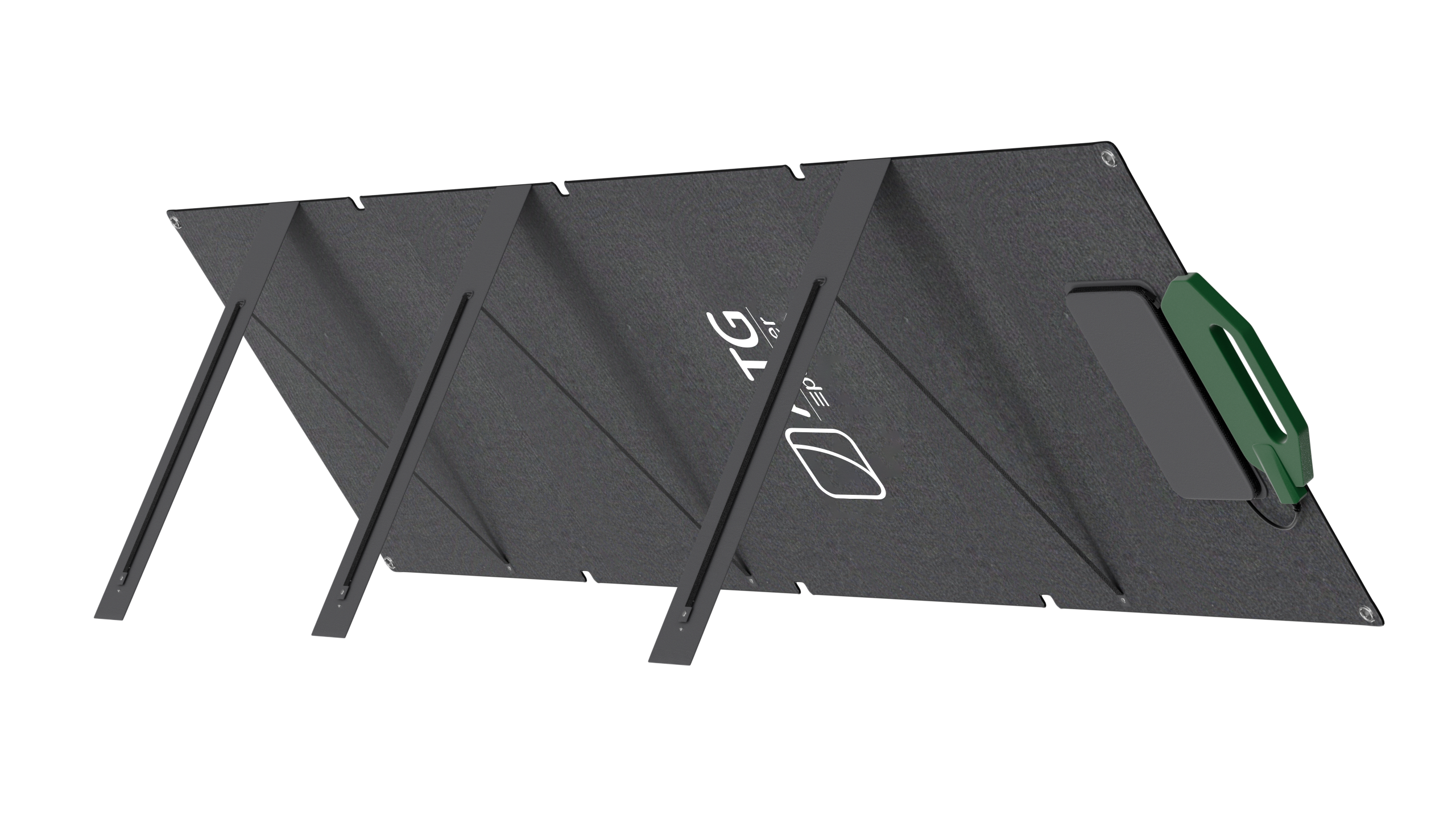

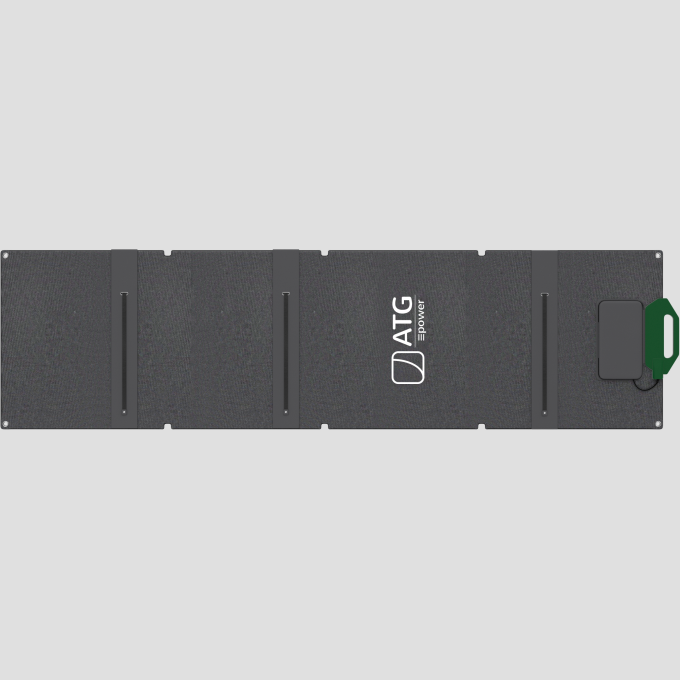

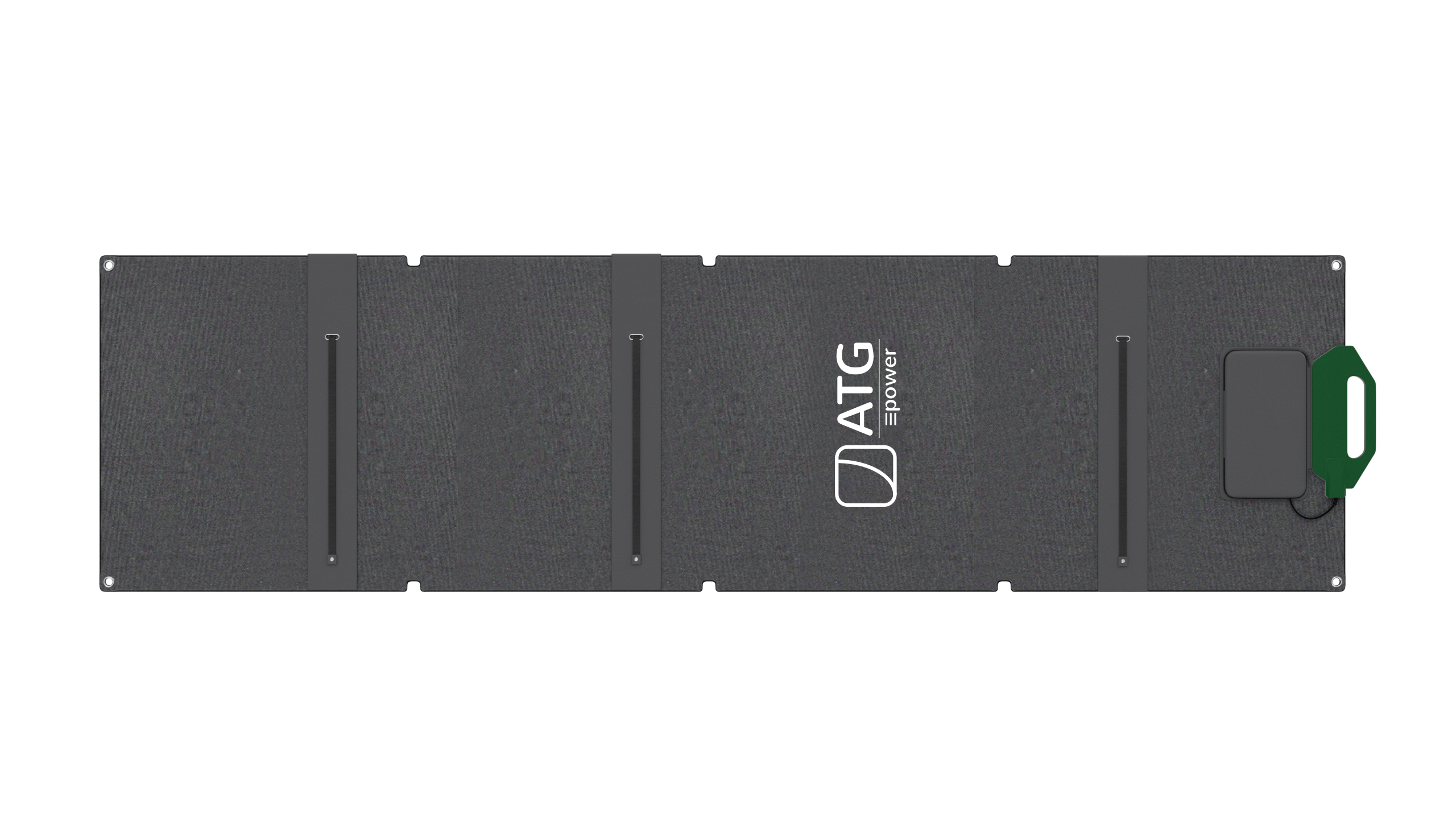

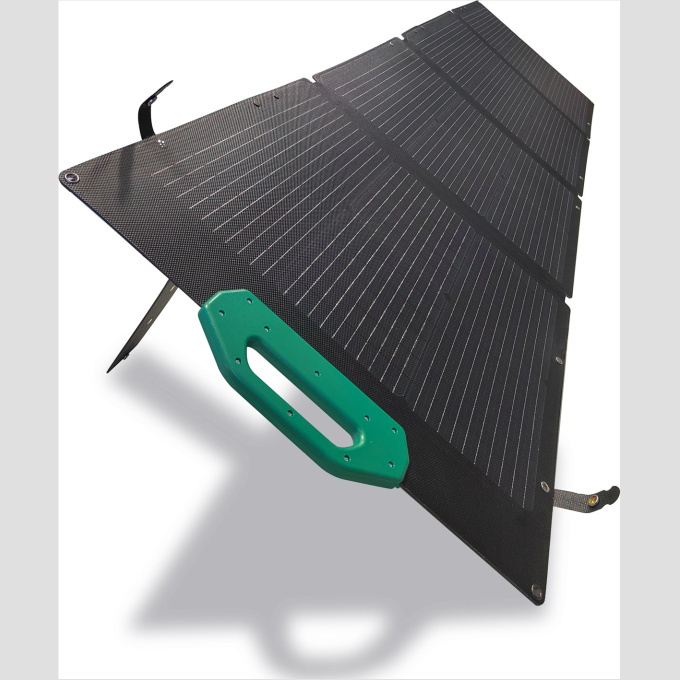

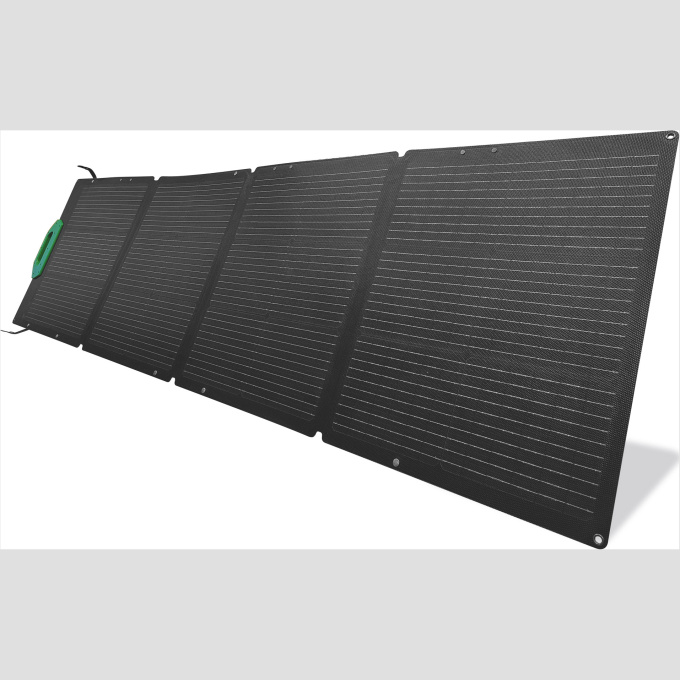

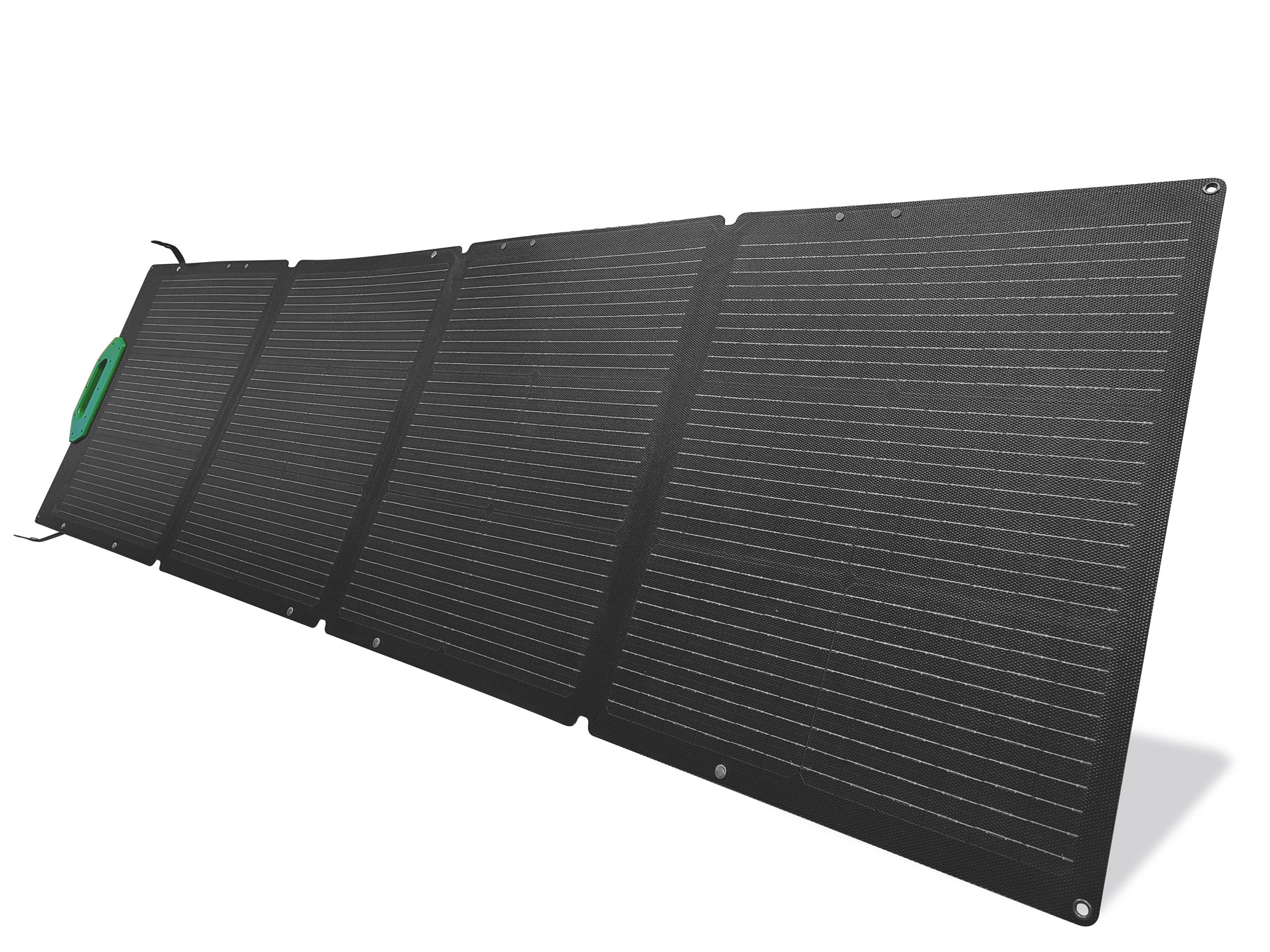

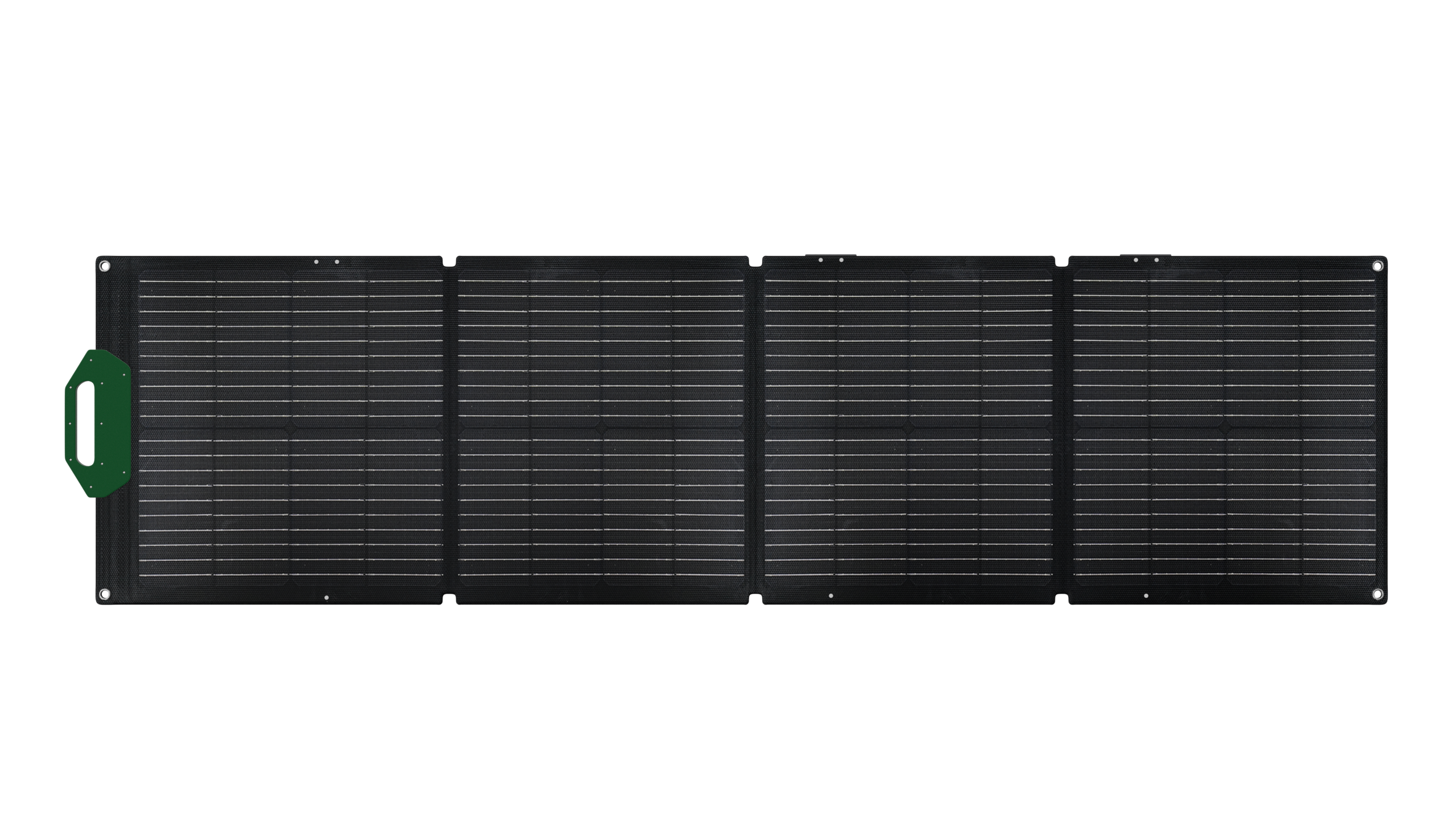

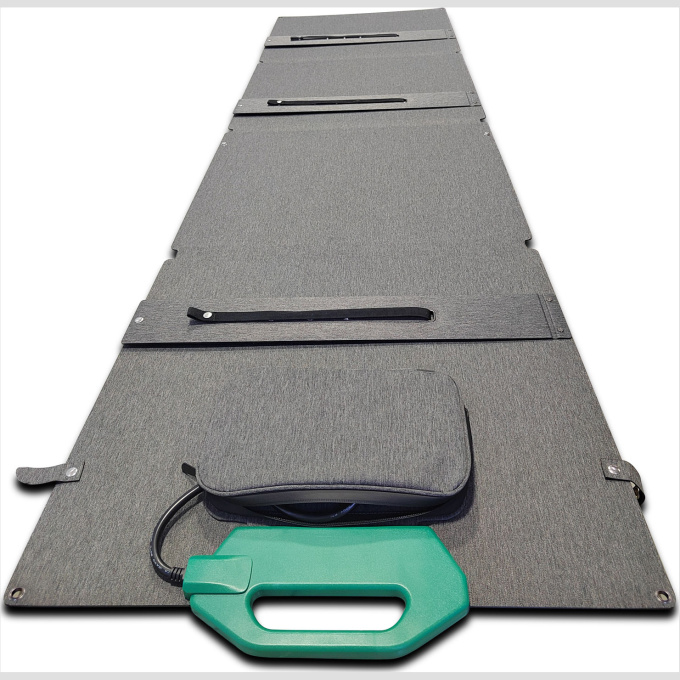

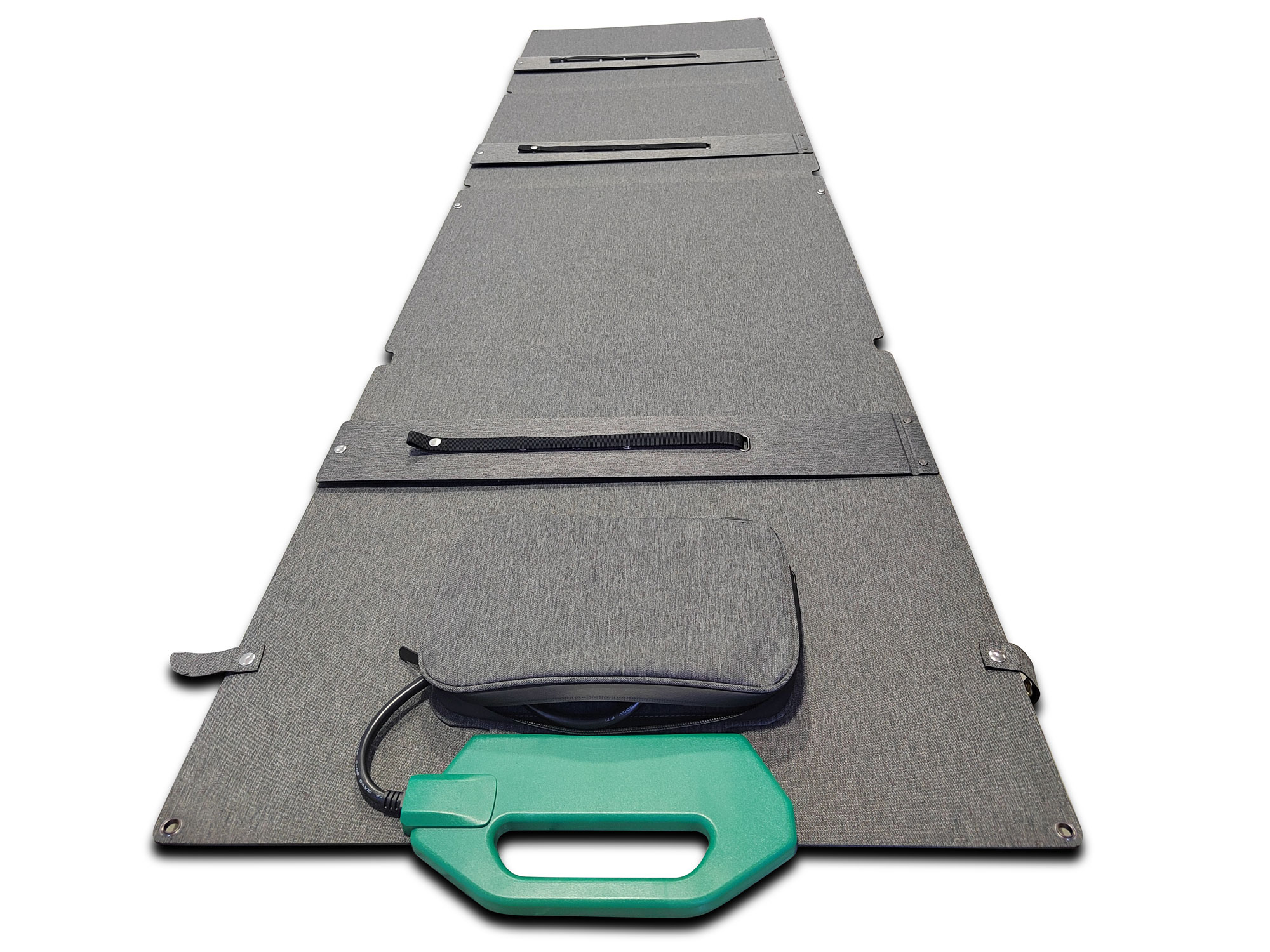

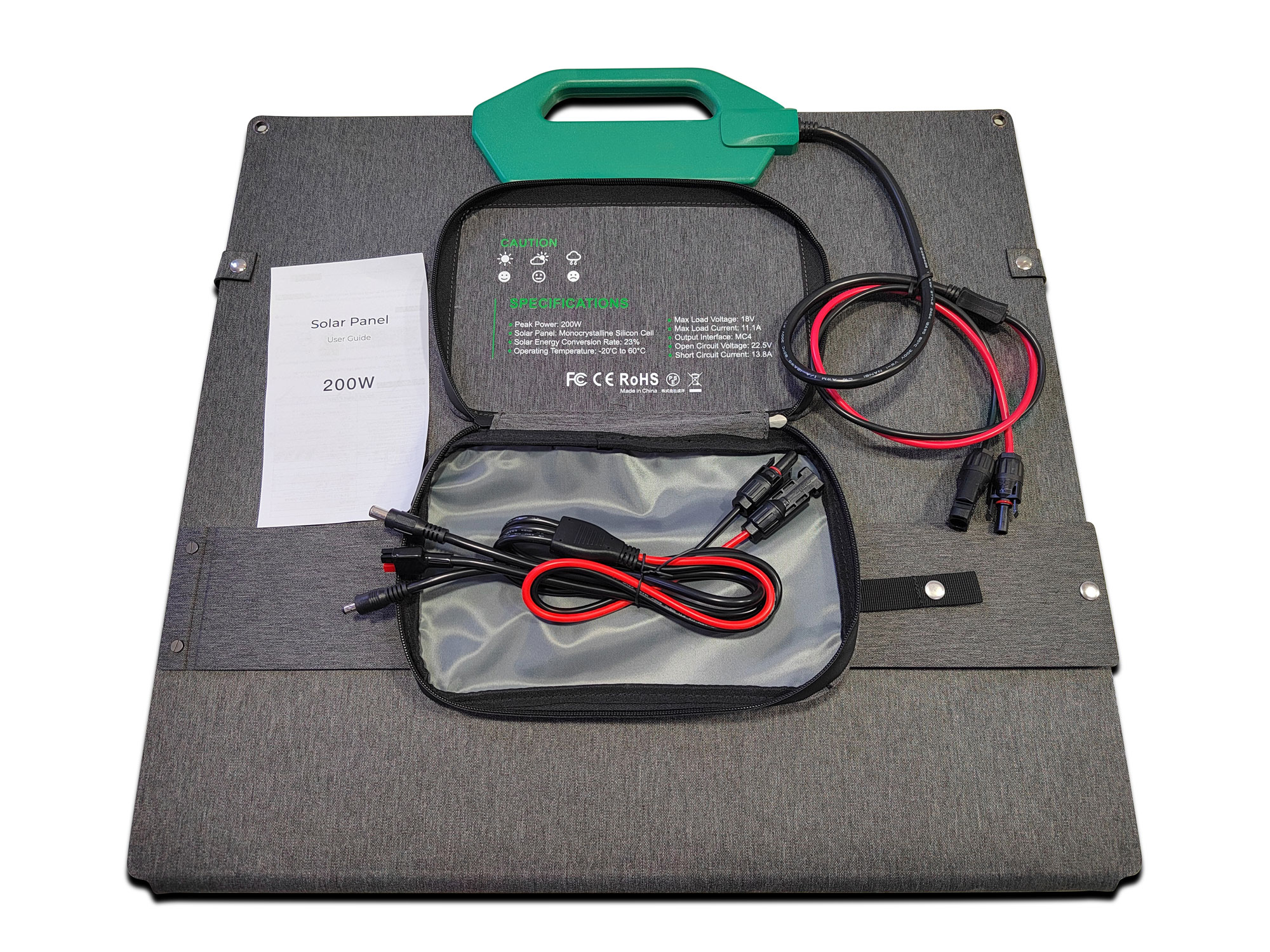

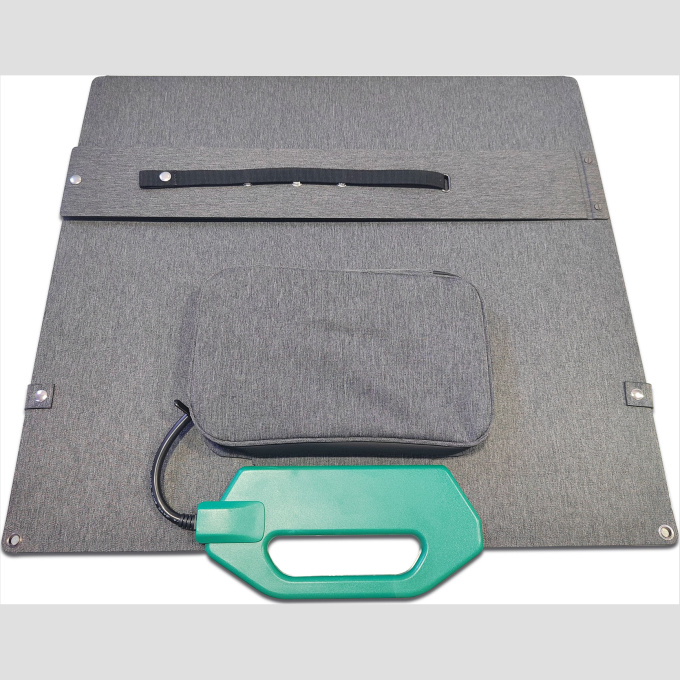

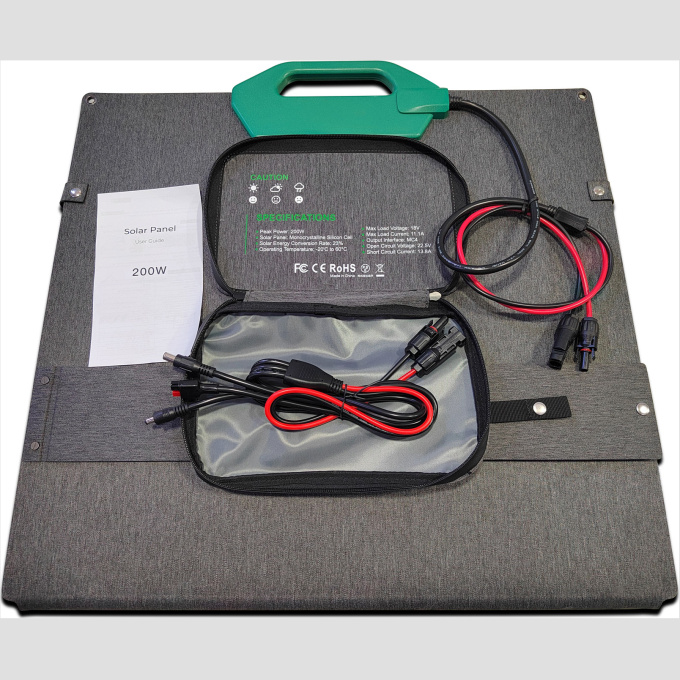

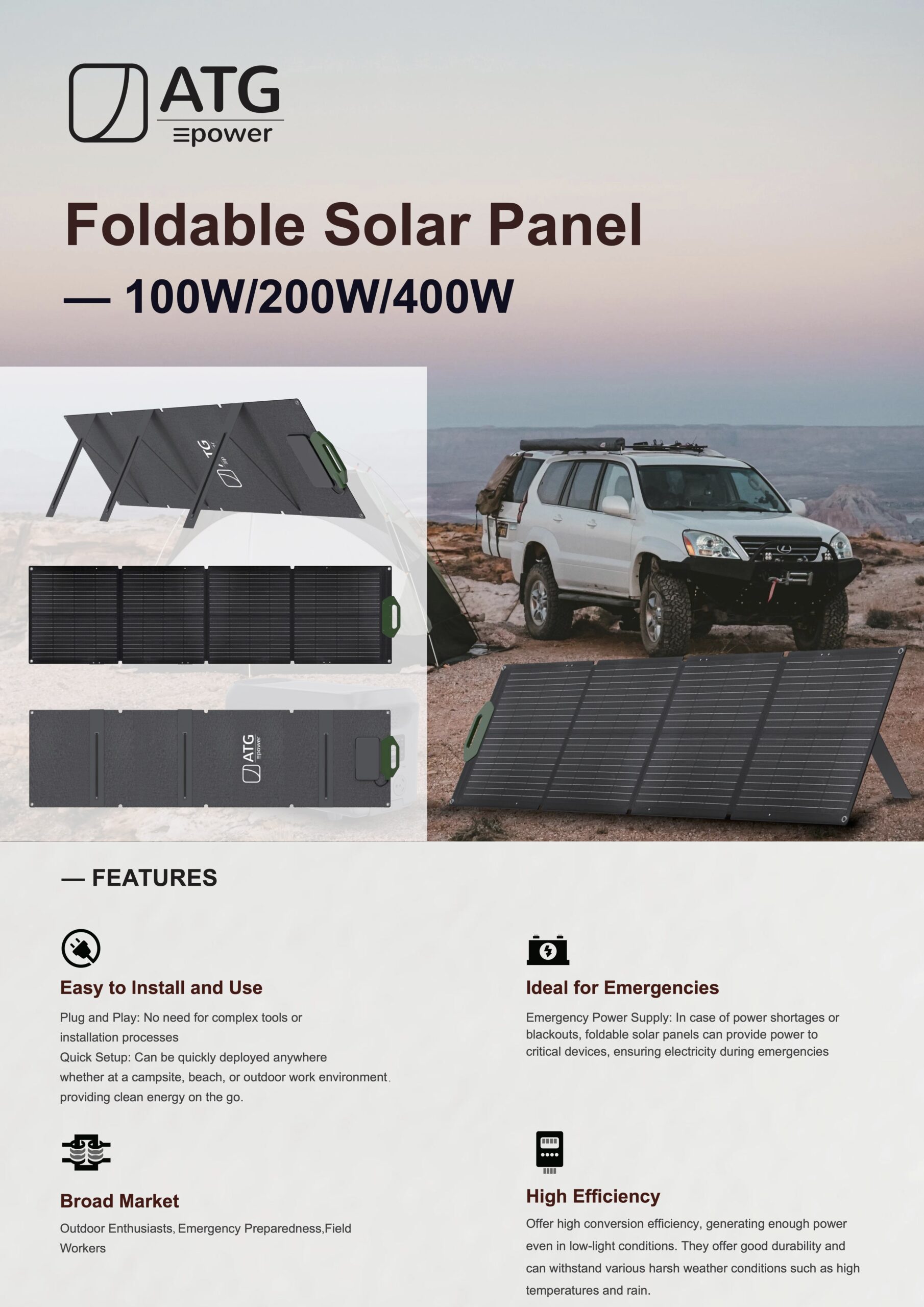

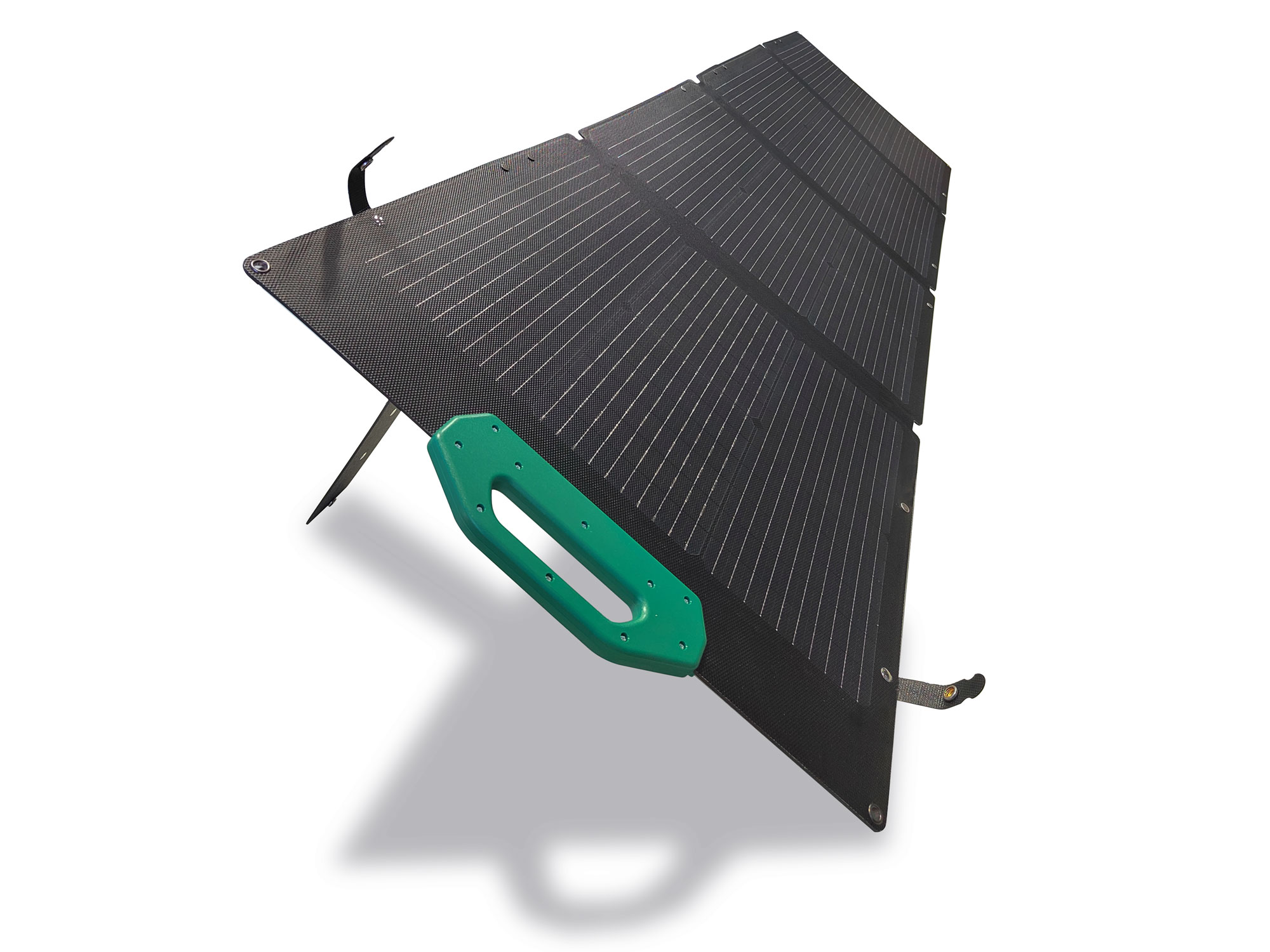

ATG Epower 200W Foldable Solar Panel
Original price was: $279.00.$169.00Current price is: $169.00.
-

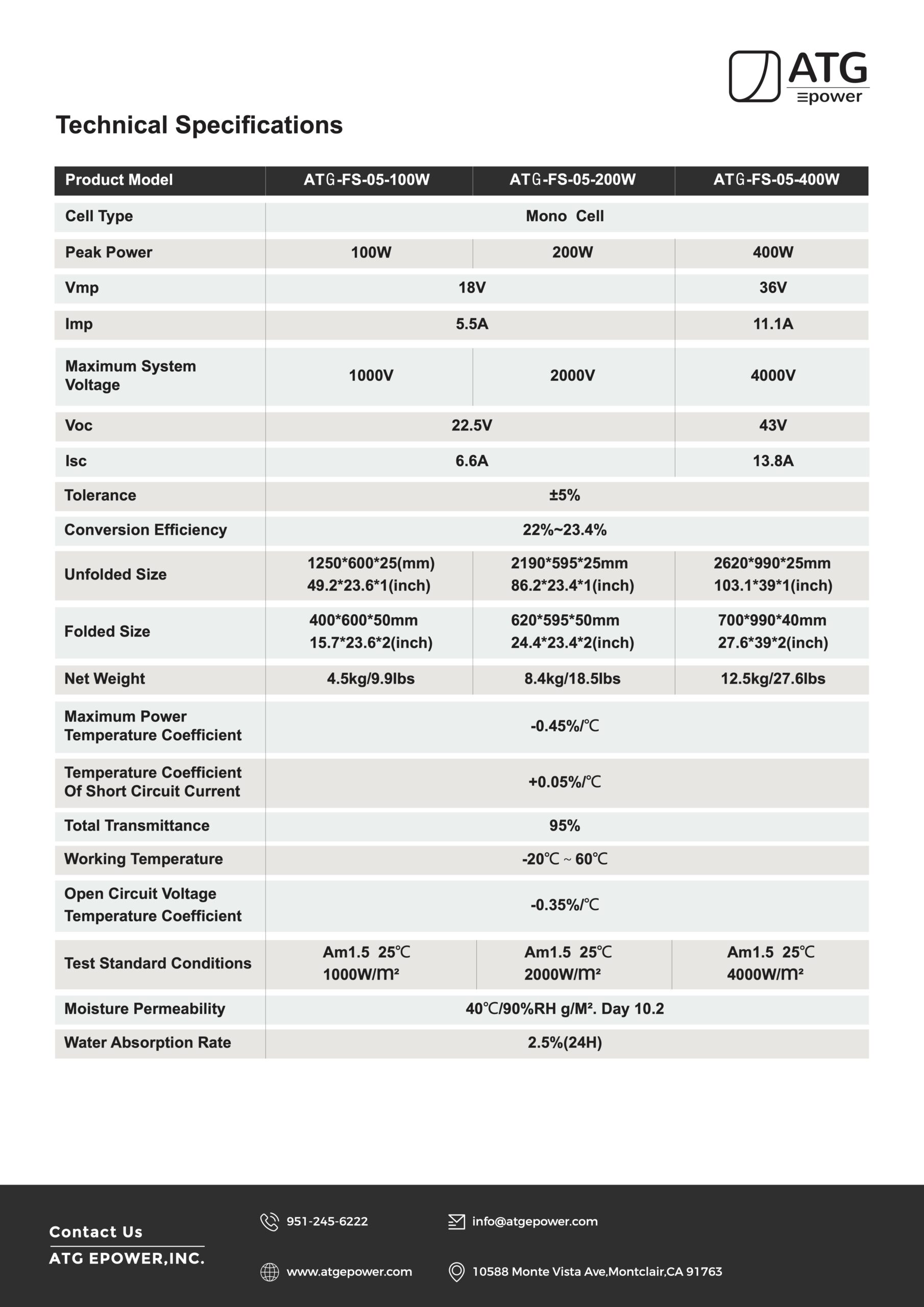

Specifications
| Cell Type | Mono Cell |
| Peak Power | 200W |
| Vmp | 18V |
| Imp | 11.1A |
| Maximum System Voltage | 200V |
| Voc | 22.5V |
| Isc | 13.8A |
| Tolerance | ±5% |
| Conversion efficiency | 22%~23.4% |
| Output Port | MC4 1m |

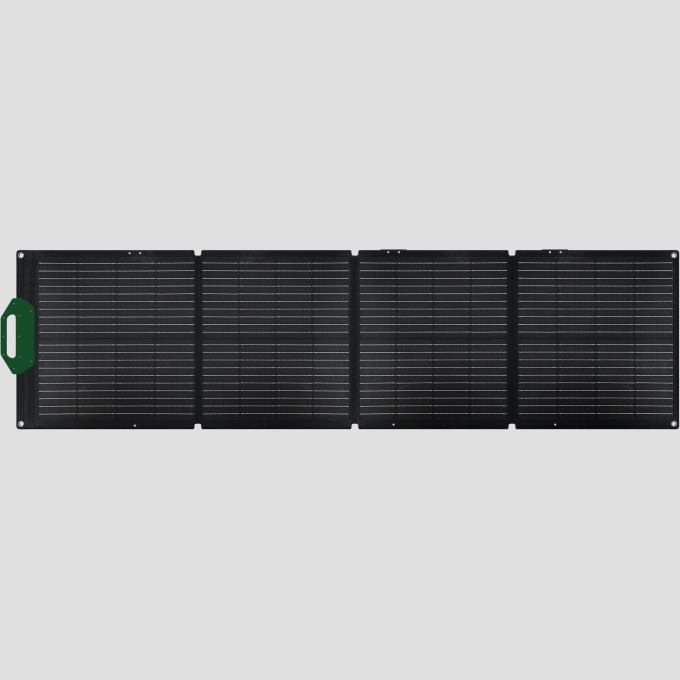

| Unfolded Size | 2190*595*25mm |

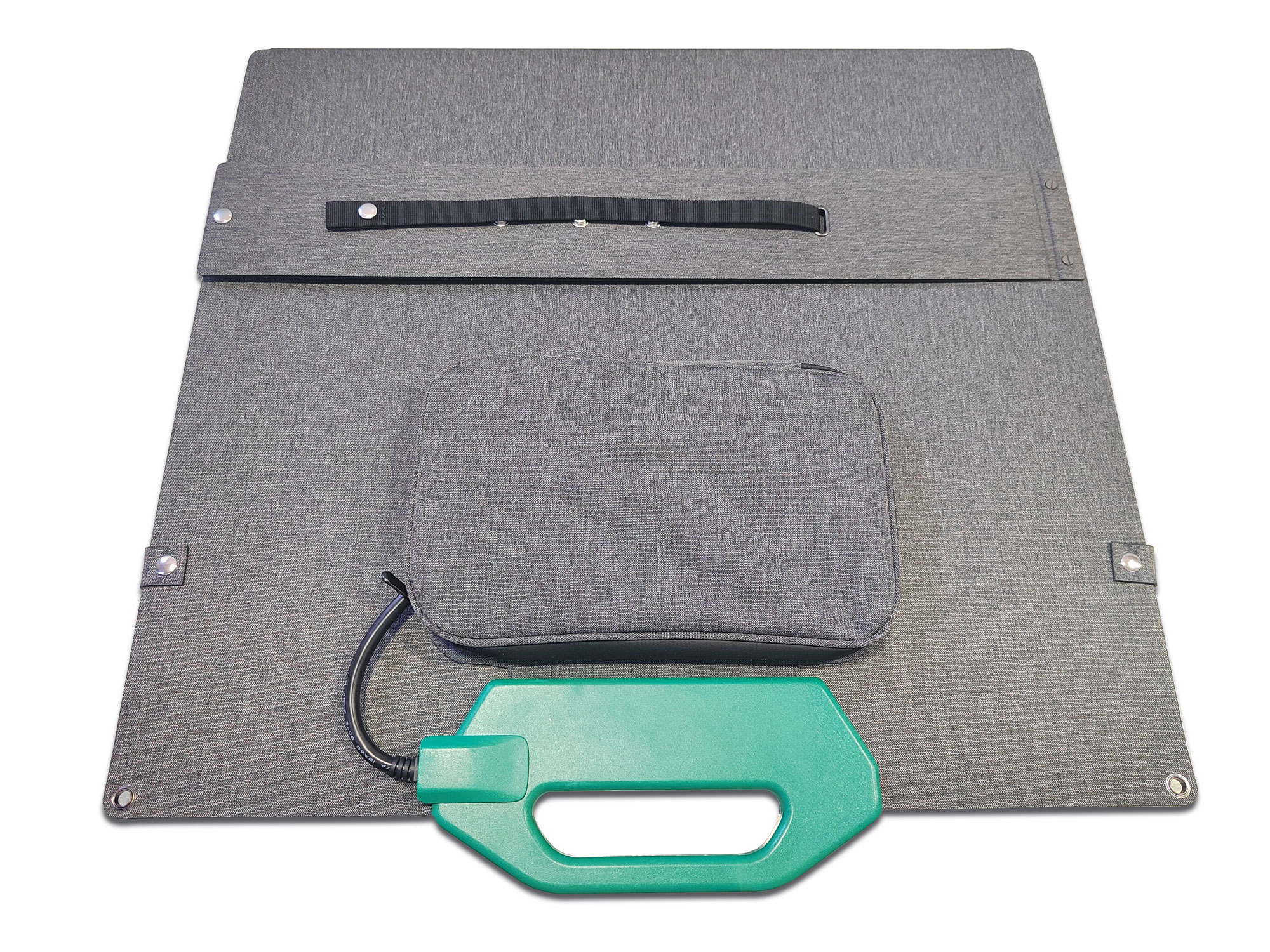

| Folded Size | 620*595*50mm |
| Net Weight | 8.4 KG |
| Total transmittance | 95% |
| Working temperature |  -20℃～60℃ |
| Maximum power temperature Coefficient |
 -0.45%/℃ |
| Open circuit voltage temperature coefficient |
 -0.35%/℃ |
| Temperature coefficient of short circuit current |
 +0.05%/℃ |
| Test standard conditions | Am1.5 25℃ 2000W/㎡ |
| Moisture permeability | 40℃/90%RH g/M².Day 10.2 |
| Water absorption rate | 2.5%(24H) |
| Remarks | Testing environment (STC)： Spectral energy： 1KW/㎡ Air pressure AM=1.5 , The light conditions are 38000W Lux（ Lighting unit ） Electronic load test. |
