Standalone LFP Batteries perfect for a variety of uses
Key Features
- Safe Lithium Iron Phosphate Chemistry
- High Density
- Reliable
- High Current Output
- Built-in safety features such as low/high voltage protection and short circuit protection
- IP20 Case

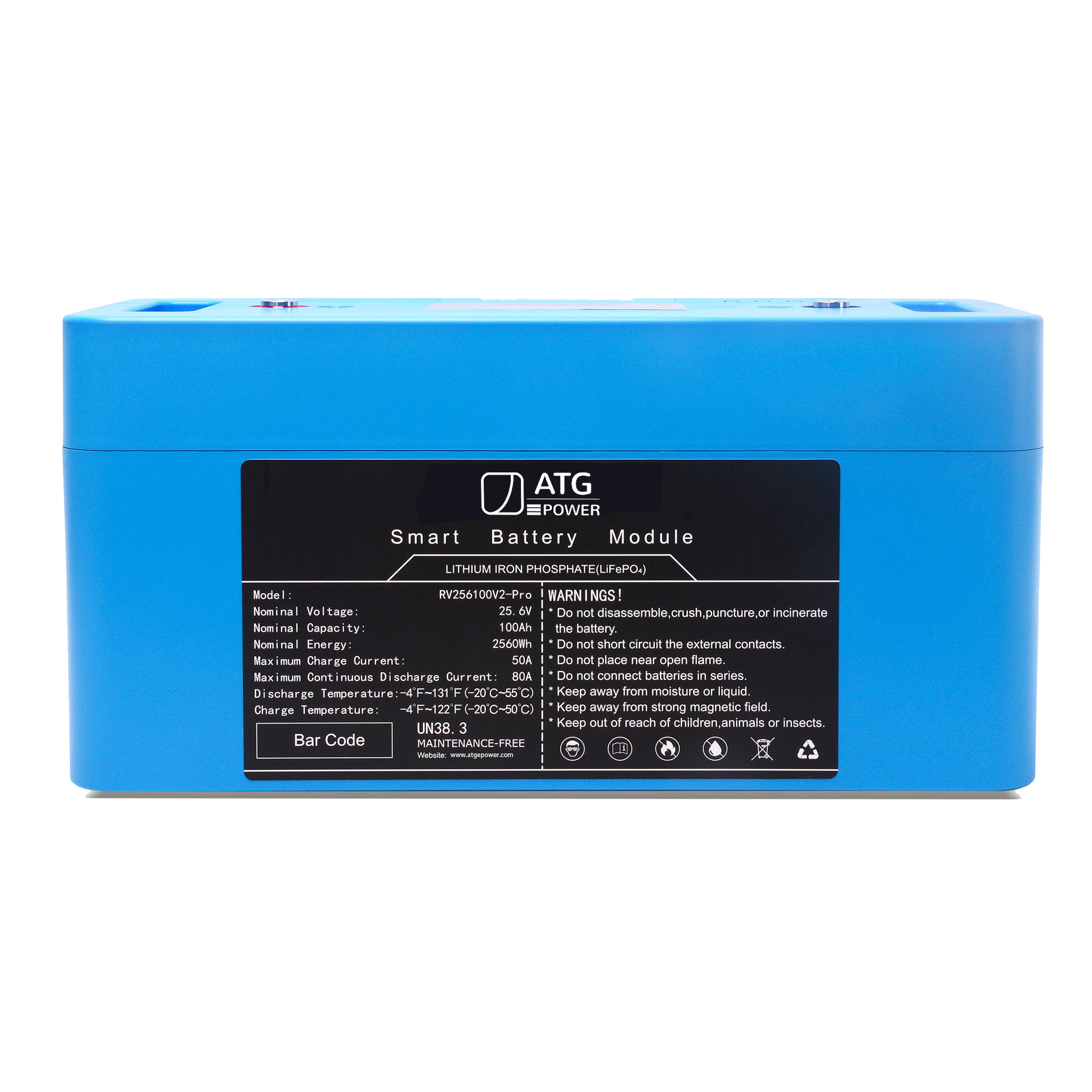

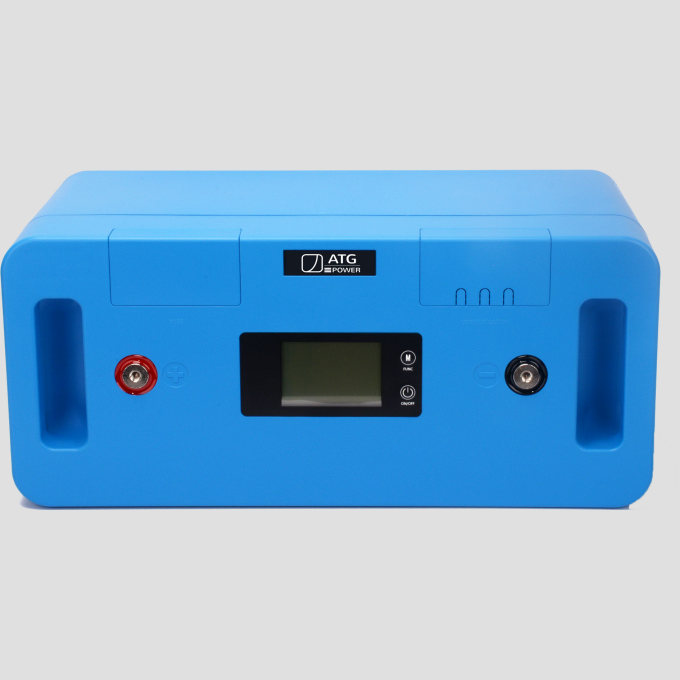

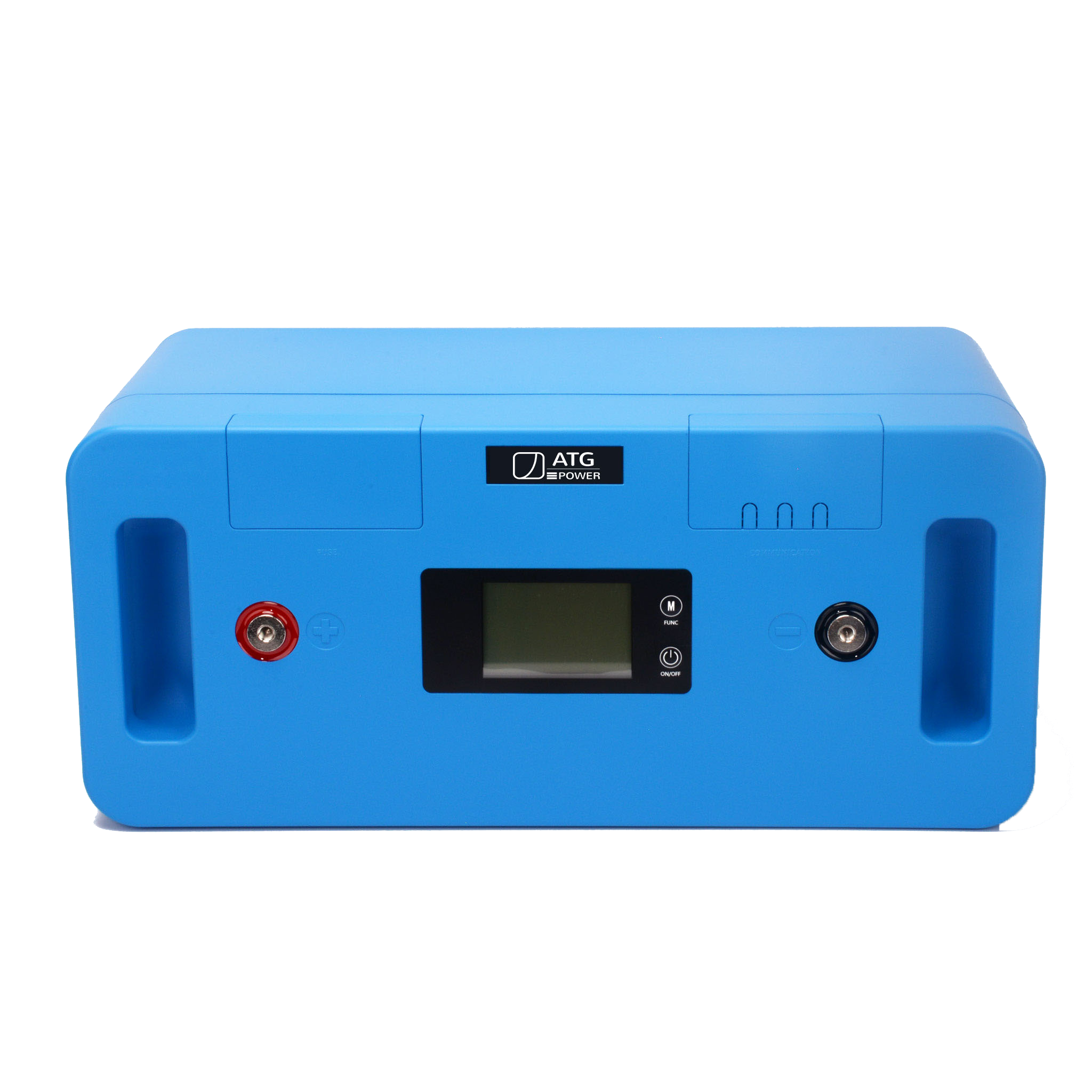

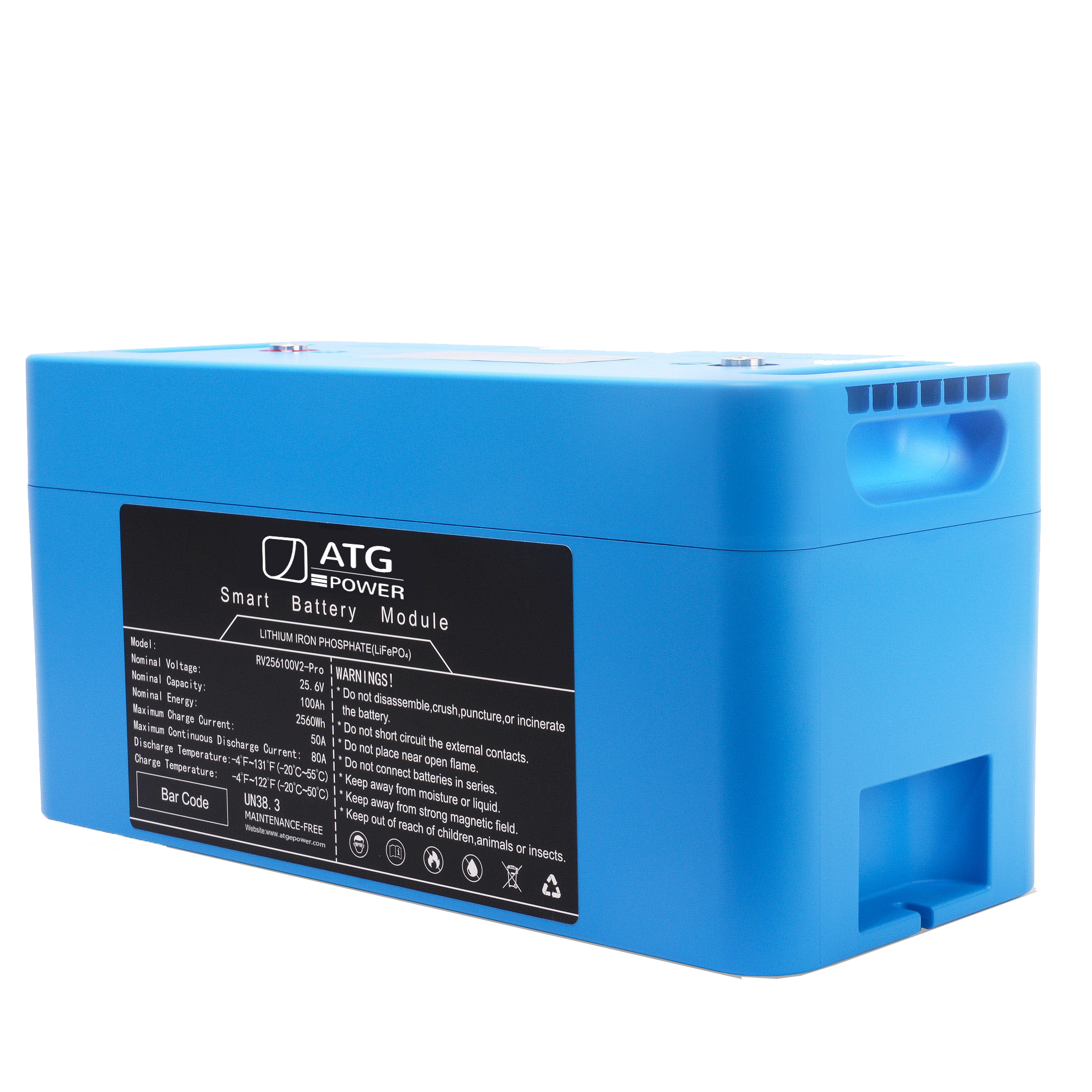

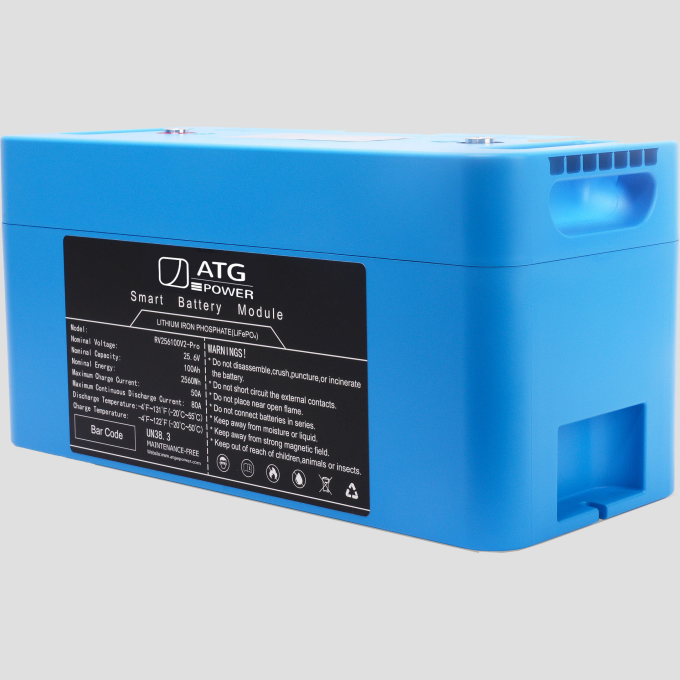

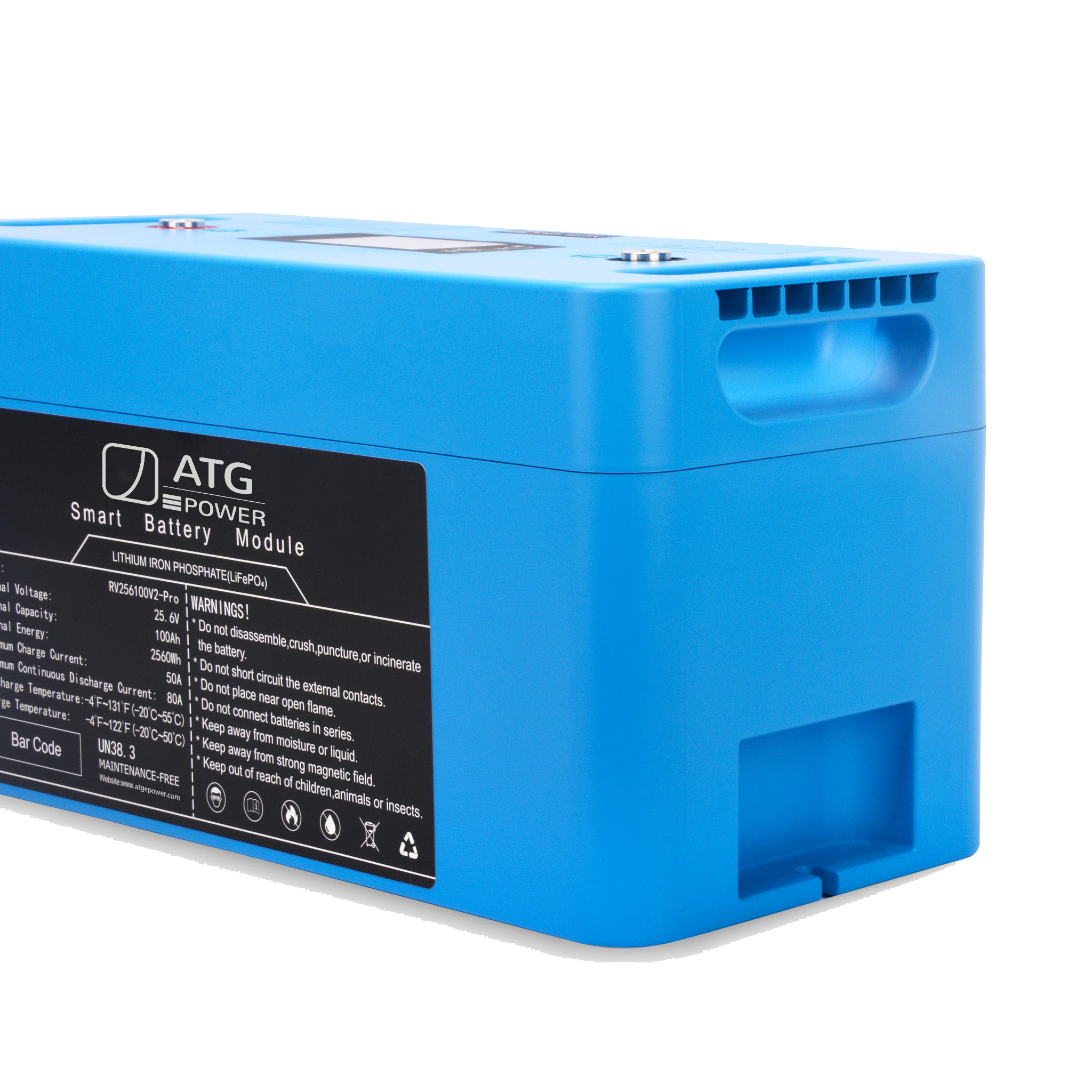

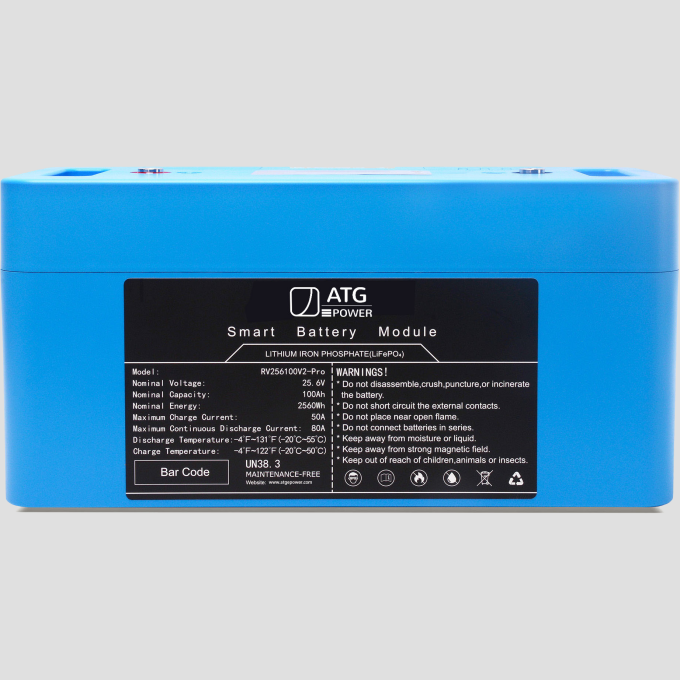

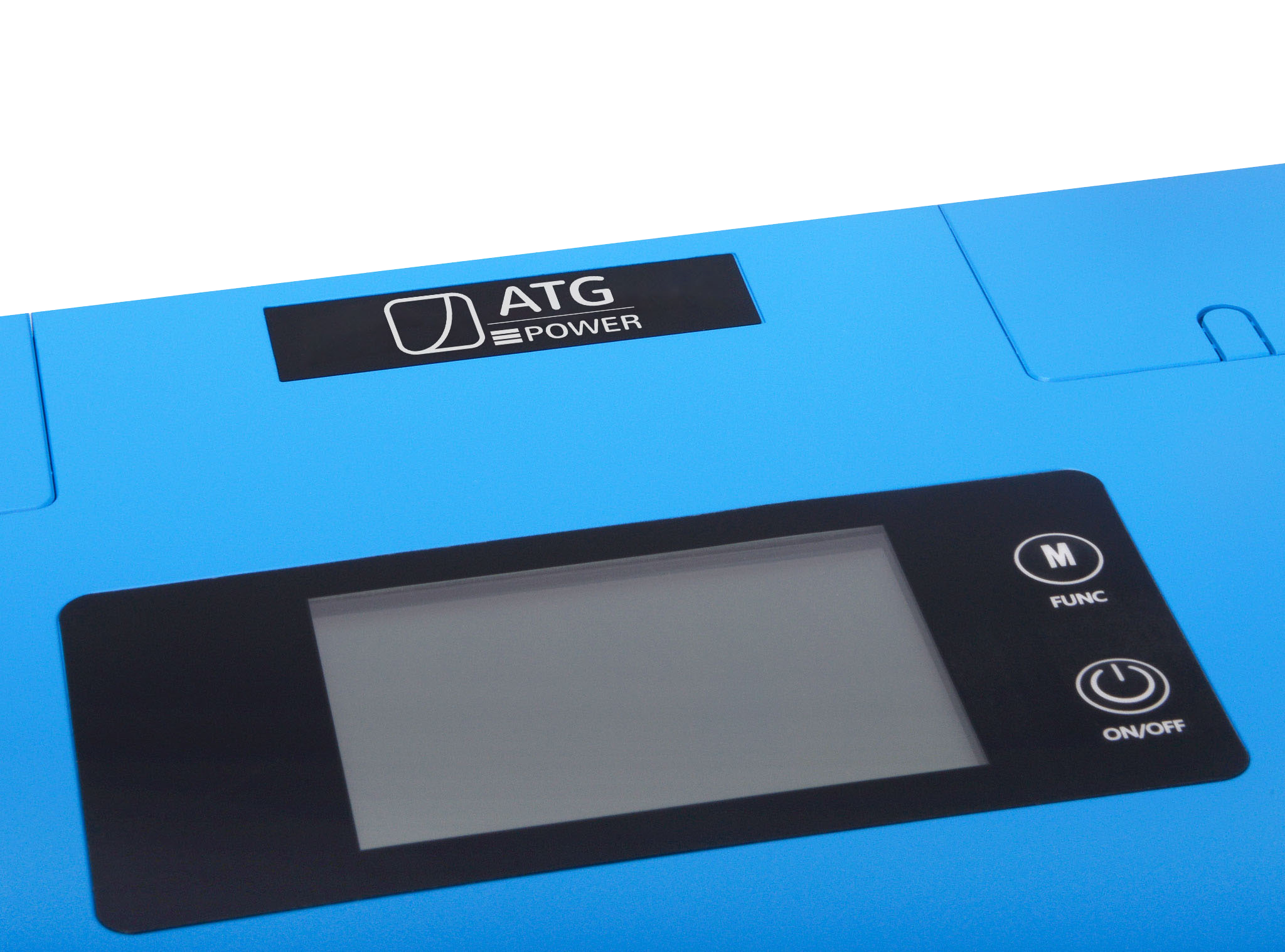

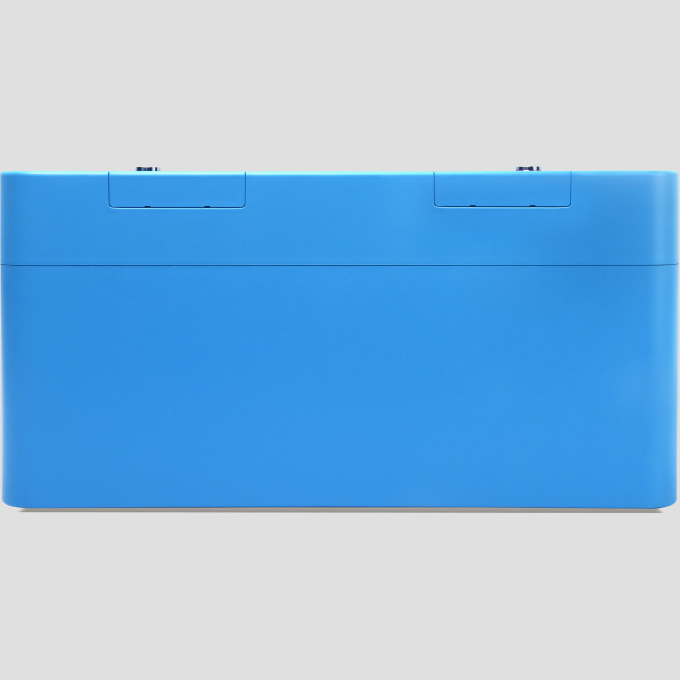

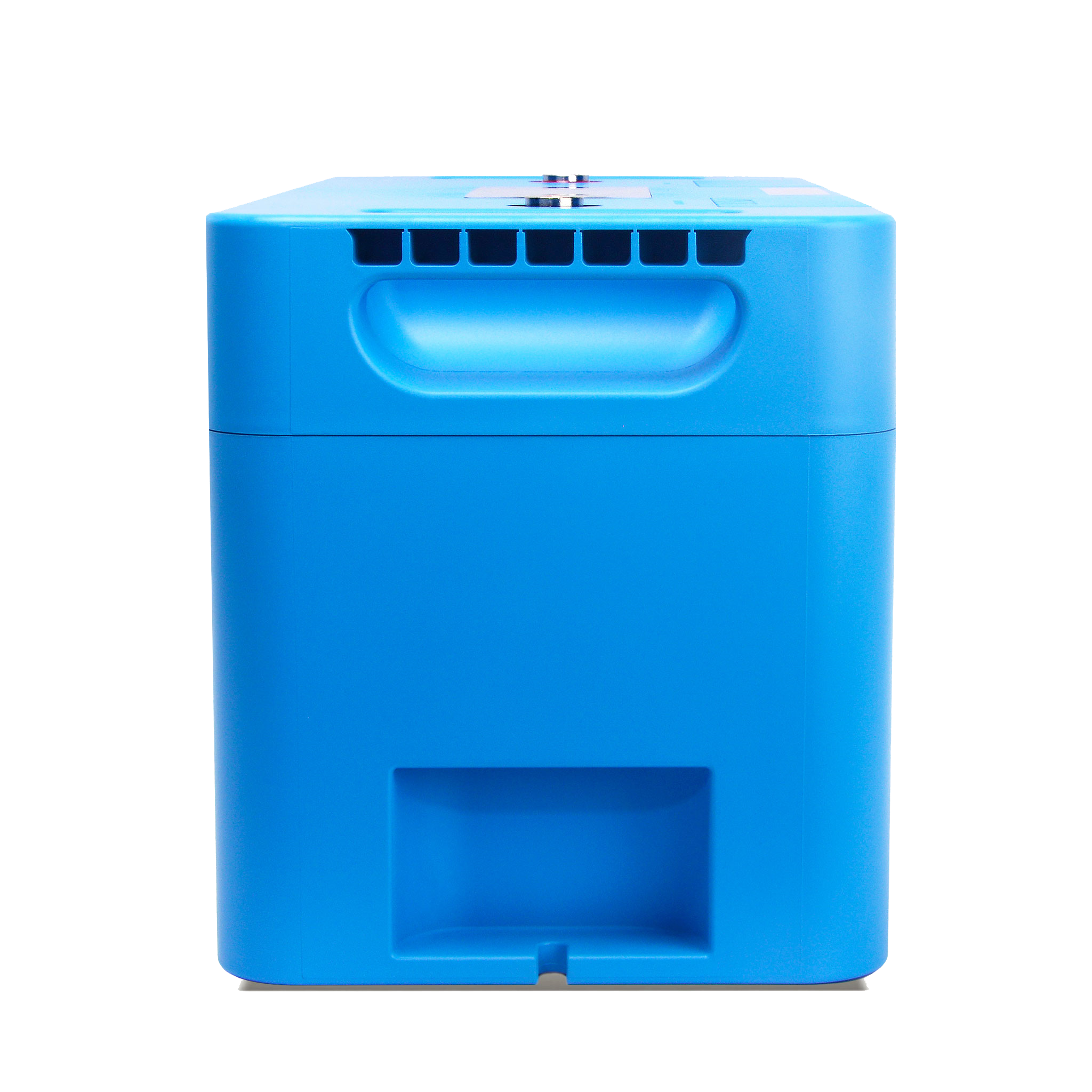

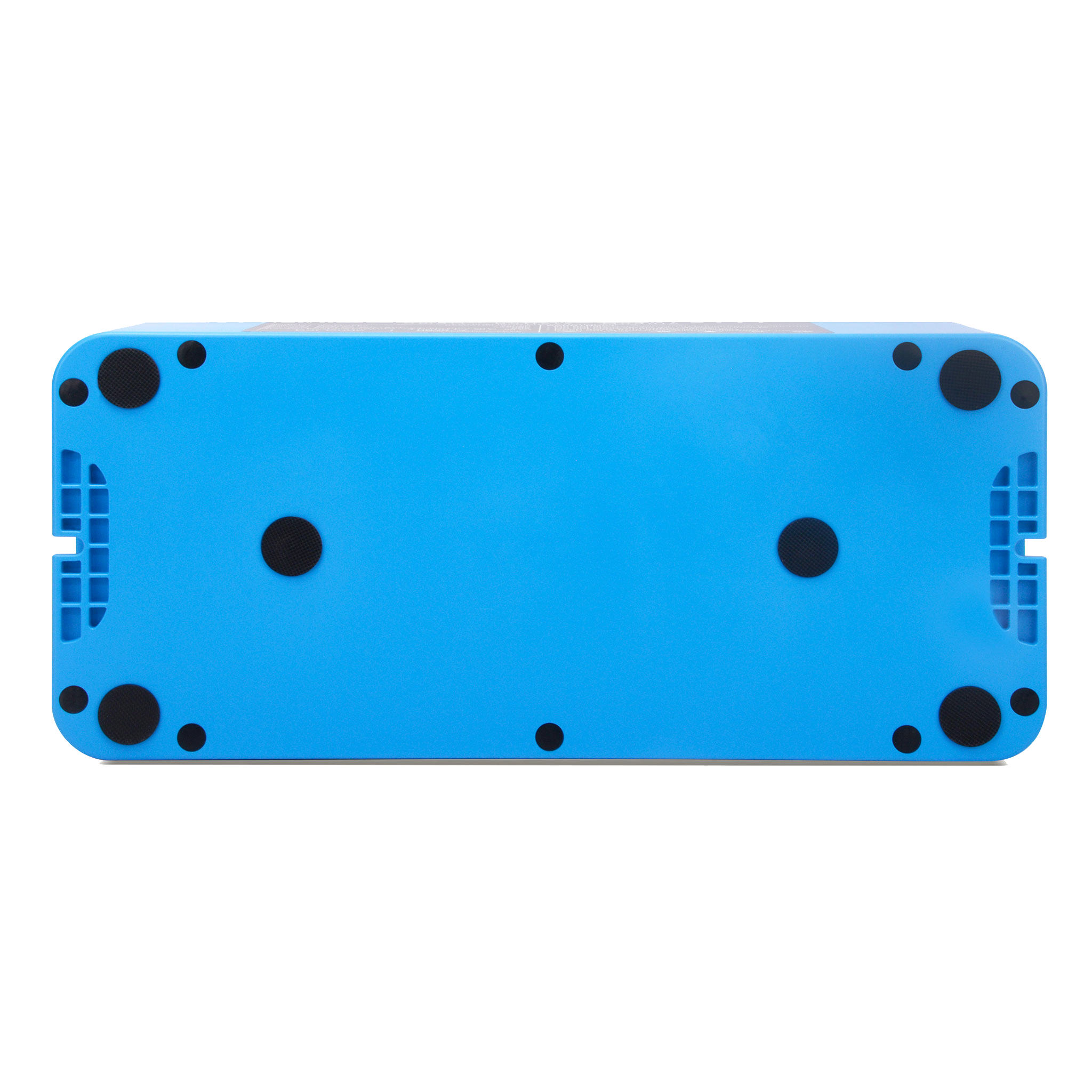

ATG Epower 25.6V, 100Ah Capacity, 2560Wh Energy RV Battery
Original price was: $540.00.$459.00Current price is: $459.00.
-
Discover the future of RV power with lithium iron phosphate (LiFePO4) batteries, the pinnacle of energy storage technology. Engineered for the demands of modern adventurers, these batteries offer unparalleled durability, reliability, and efficiency. Imagine extended off-grid stays without the worry of power shortages or maintenance headaches. With significantly longer lifespans and faster charging capabilities compared to traditional lead-acid batteries, LiFePO4 batteries are the smart choice for those who value performance and peace of mind. Elevate your RV experience today with the power of lithium iron phosphate technology and redefine how you explore the open road.
Specification
| Electrical Parameters | |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Discharge Time @ 50A | 120min |
| Internal Resistance | ≤ 30mΩ @ 50% SOC |
| Efficency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series/Parallel | 2/8 |
| Discharge Parameters | |
| Max Continuous Discharge Current | 80A |
| BMS Discharge Protection Current | 200A (5s) |
| Recommended Low Voltage Protection | 24V |
| BMS Low Voltage Protection Value | 22.4V (3s) |
| Low Voltage Protection Release Value | 24.8V |
| Short-Circuit Protection | 200-600 (μs) |
| Temperature Parameters | |
| Discharge Temperature Range |  -4~131 (°F) |
| Charge Temperature Range |  -4~122 (°F) |
| Recommended Storage Temperature |  -4~113 (°F) |
| Discharge High Temperature Protection | 149°F |
| Charge High Temperature Protection | 140°F |
| High Temperature Protection Release | 118°F |
| Mechanical Parameters | |
| Size (L*W*H) | 19.68x 8.66 x 9.82 (inches) |
| Weight | 57.3 lbs |
| Terminal | M8x1.25x12mm |
| Terminal Torque | 62in-lbs |
| Casing Material | PC+ABS |
| IP Code | IP20 |
| Chemistry | LiFePO4 |
| Charge Parameters | |
| Recommended Charge Current | 10A-50A |
| Max Continuous Charge Current | 50A |
| Recommended Charge Voltage | 28.4V-29.2V |
| BMS High Voltage Protection Value | 29.2V (3s) |
| High Voltage Protection Release Value | 27.6V |
| Balance Opening Voltage | 28V |
| Heating Parameters | |
| Heating Temperature Range |  -4~50(°F) |
| Heating Time | 1hr @ 5A |
| Stop Heating Temperature | 167°F |
| Specs | |
| Certification | UN38.3&CE (Battery) UL1642 (Cells) IEC62619 (Battery) |
| Transport | UN3480, Class 9 |
FAQ
Q: What chemistry are these batteries
A: These batteries are lithium iron phosphate a very mature, reliable, and stable battery chemistry found stationary energy storage systems and newer EV cars.

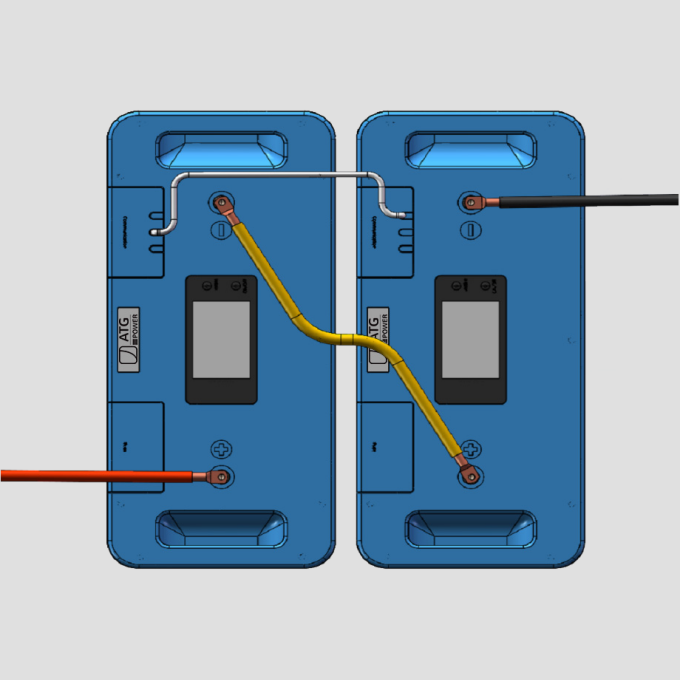

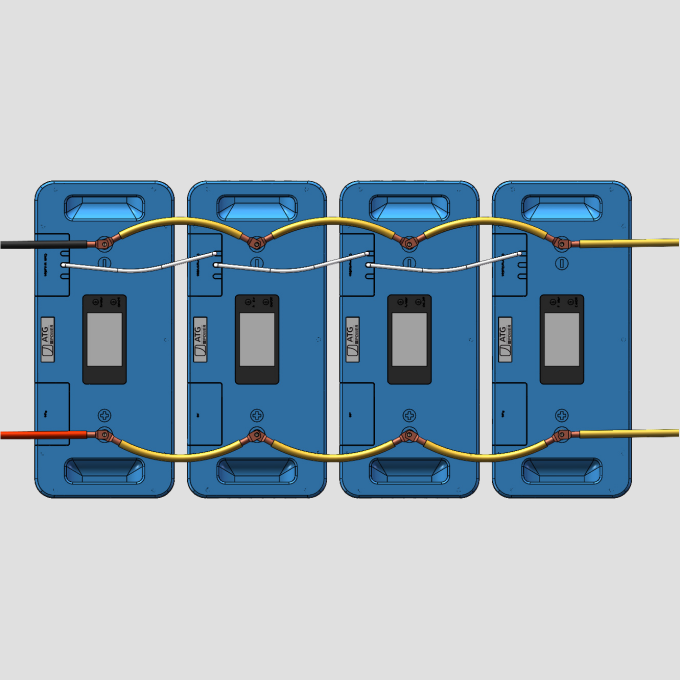

Q: Can I connect multiple of them together?

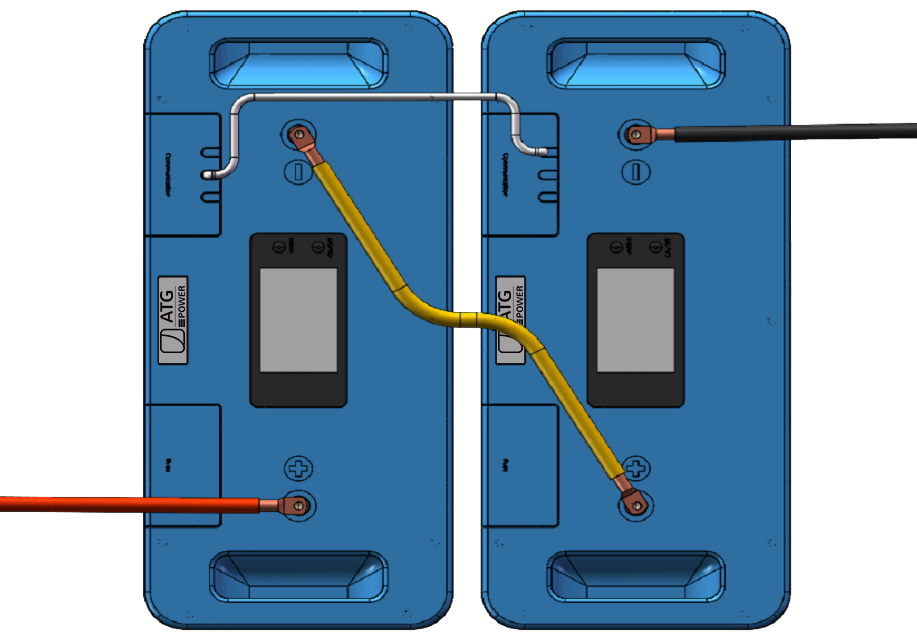

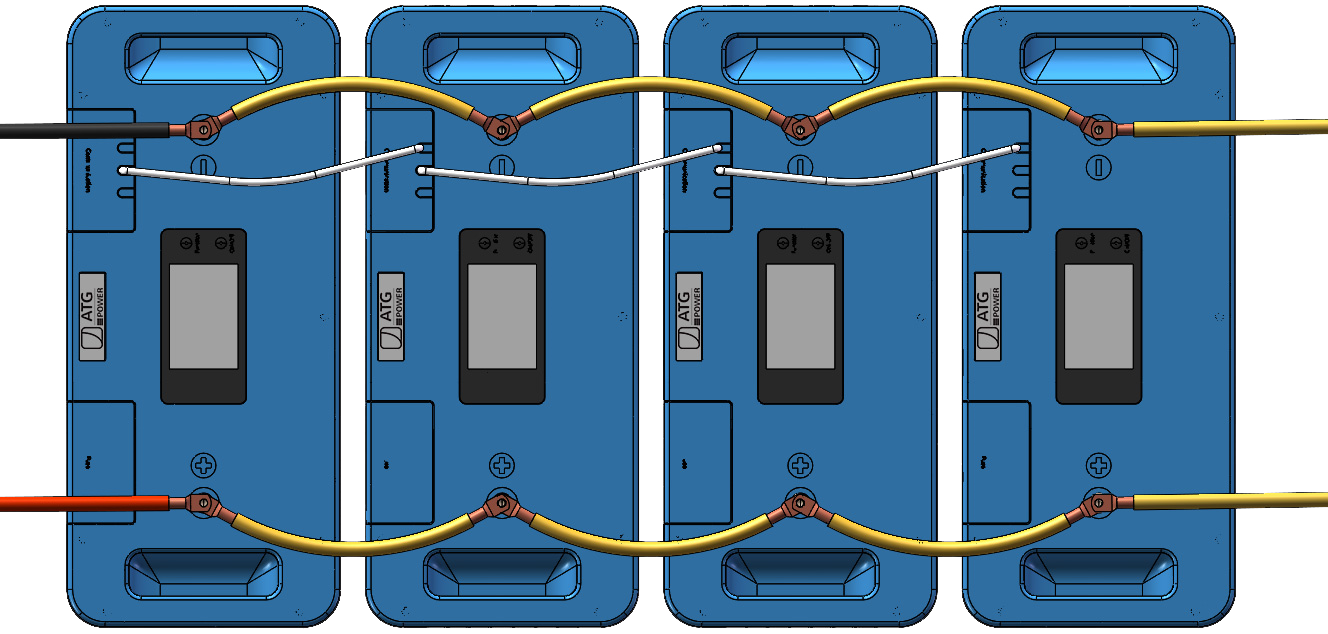

A: Yes for the 12.8 V configurations you can connect four in series and eight in parallel while the 25.6V can only handle two in series and eight in parallel.
Q: Are these only for RVs
A: No. These can be used for many purposes including RVs, boats, golf carts, and electric tools.
Q: Does this come with a battery management system?
A: It has a battery management system that can handle various safety features such as over voltage protection, low voltage protection, current discharge protection, and short-circuit protection.
