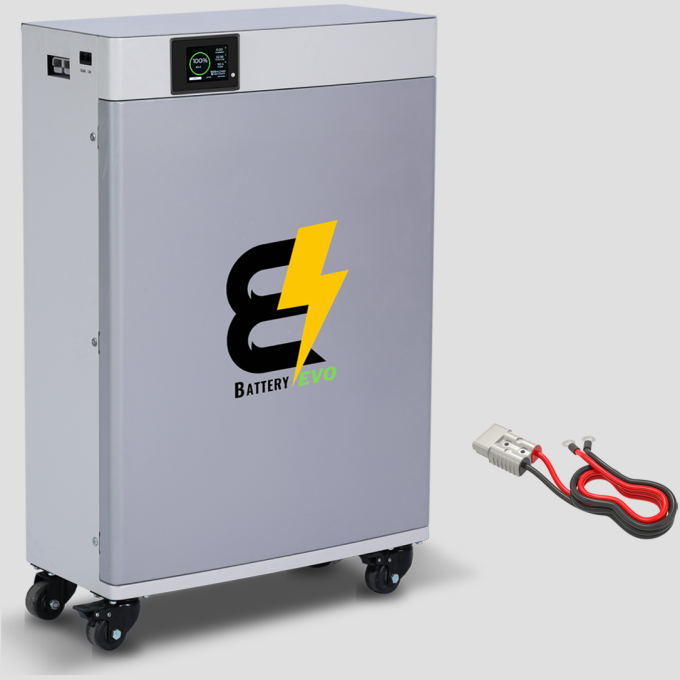

BatteryEVO 48V CONDOR ELITE 230Ah 11.8 kWh

Original price was: $4,450.00.Current price is: $3,399.00.

-

Suitable for

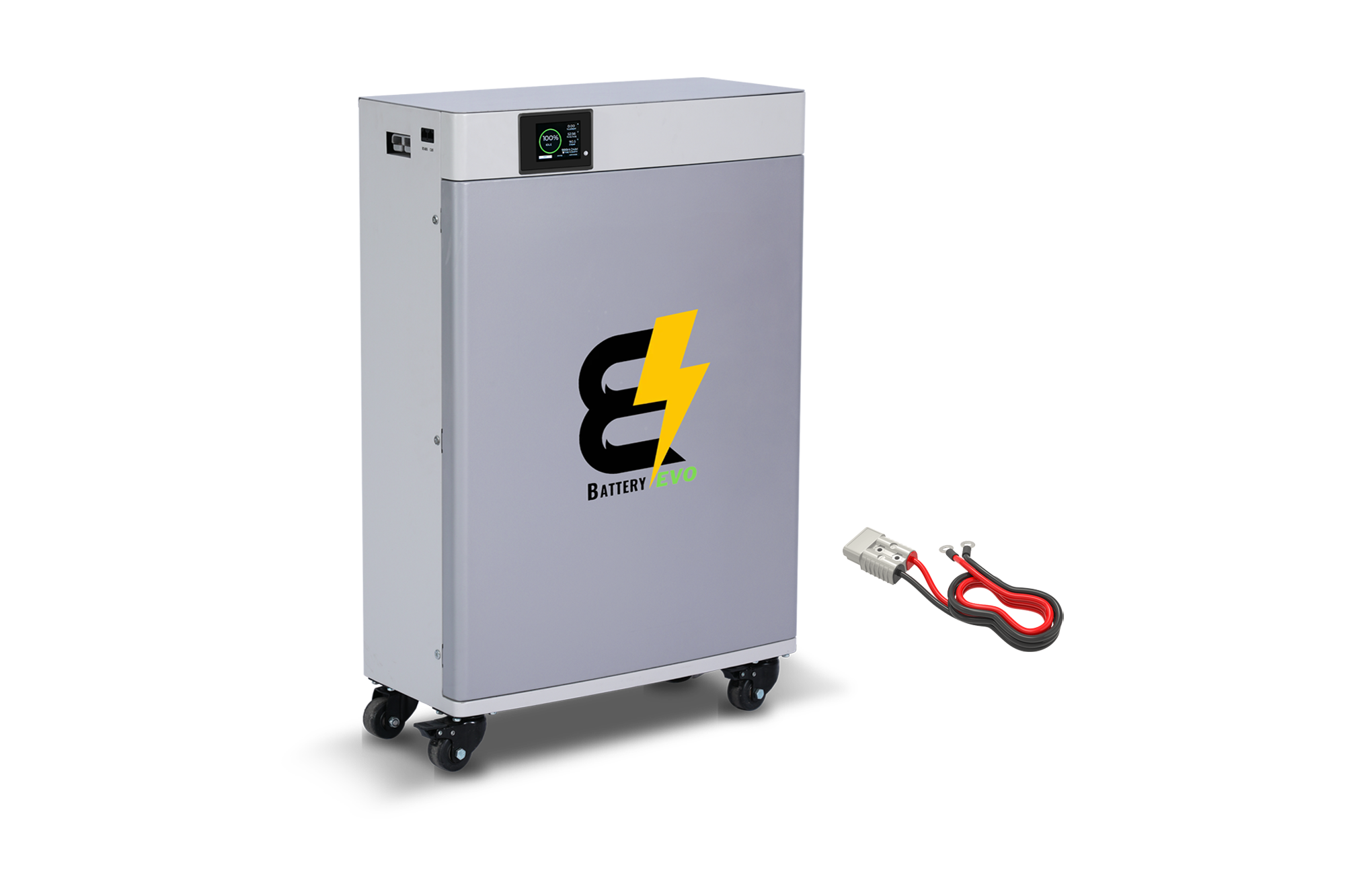

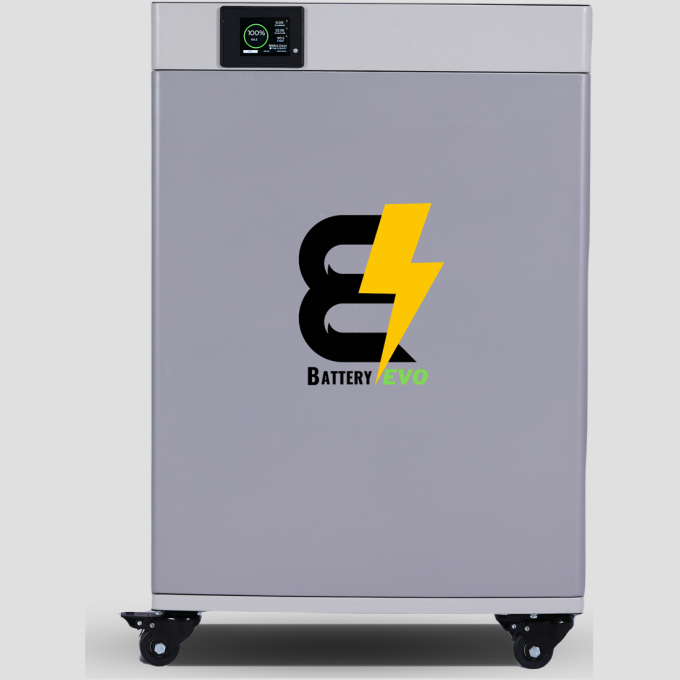

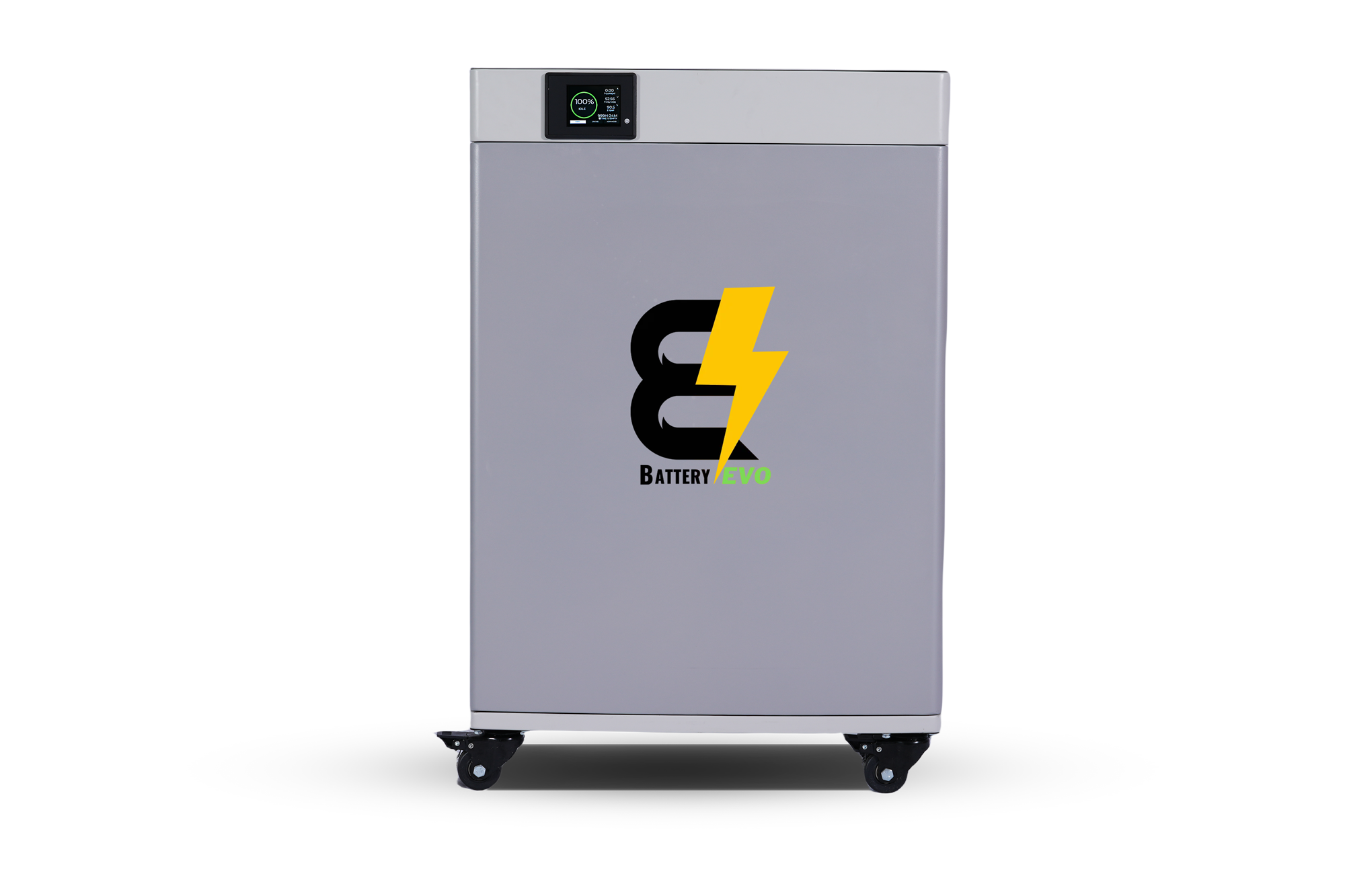

    The BatteryEVO 48V 11.8 kWh CONDOR Elite Battery

    Carefully designed with increased battery capacity in mind! Building on the success of our popular CONDOR Battery, the CONDOR Elite emerges as the ultimate answer for your solar, off-grid, or emergency power needs.

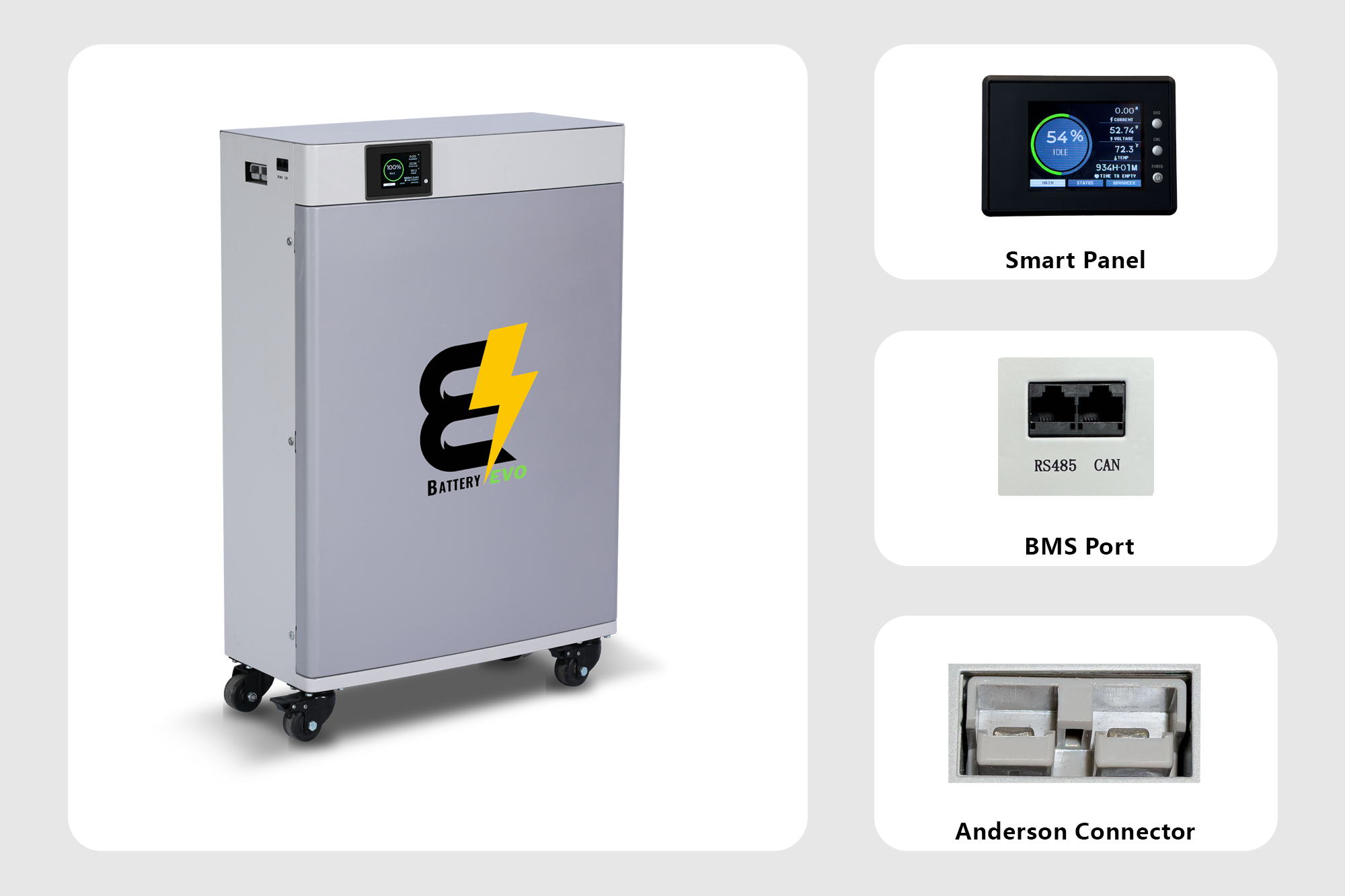

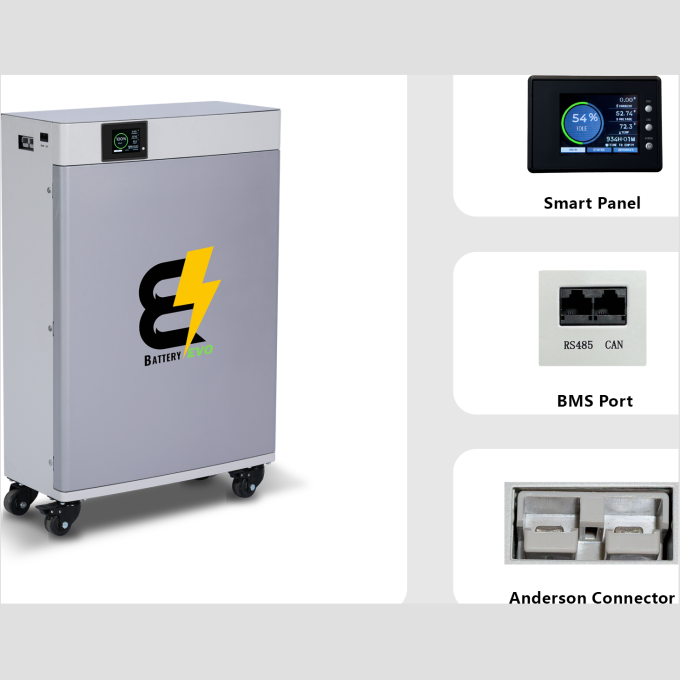

    Inside the CONDOR Elite, you’ll find our advanced BMS and unique Triple Safety Redundancy System, giving you complete confidence in the safety and reliability of your power. Plus, there’s an LED Smart Display on the front panel for real-time monitoring of battery status and performance details like voltage, amperage, temperature, cycle count, cell voltages, and more. You can even connect multiple units in parallel to create a large off-grid power system or keep one unit as backup for emergencies.

    A single CONDOR Elite can power an entire 2 to 4 bedroom home! With great cost-effectiveness in terms of price per kWh, this battery is one of the most compelling off-grid and home power storage solutions available today. Plus, it’s backed by our comprehensive 10-Year Warranty. For those looking to significantly upgrade their power setup, it all starts with the 48V CONDOR Elite!

    Specification


    System Voltage: 48V
    Nominal Voltage: 51.2V
    Chemistry: LFP
    kWh Capacity: 11.8kWh
    Ah Capacity: 230Ah
    Charging Voltage: 55.2V – 58.4V
    Max Charge Voltage: 58.8V
    Operating Voltage Range: 44.8V – 58.4V
    Suggested Low Voltage Cutoff: 44.8V – 50.8V
    Cell Configuration: 16S1P
    Max Continuous Discharge Current: 175A
    Max Continuous Power: 8960W
    Max Discharge Peak Current: 300A (5 seconds)
    Max Charge Current: 150A
    Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
    Discharge Temperature Range: -20°C (-4°F) / 55°C (131°F)
    Optimal Discharge Temperature Range: 15°C (59°F) / 35°C (95°F)
    Storage Temperature Range: -5°C (23°F) / 35°C (95°F) (Max 6 Months)
    Weight: 230lbs (104.3kg)

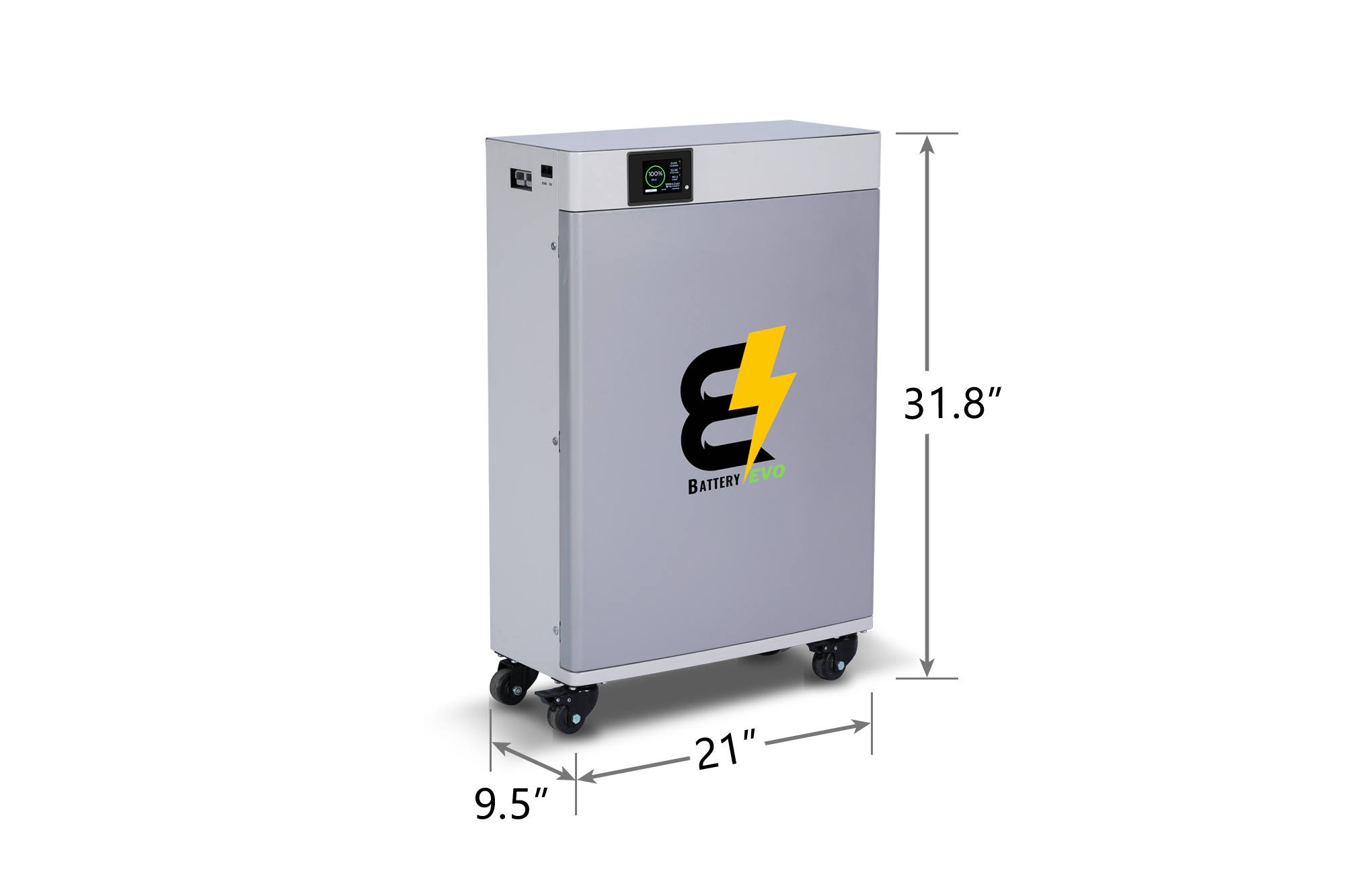

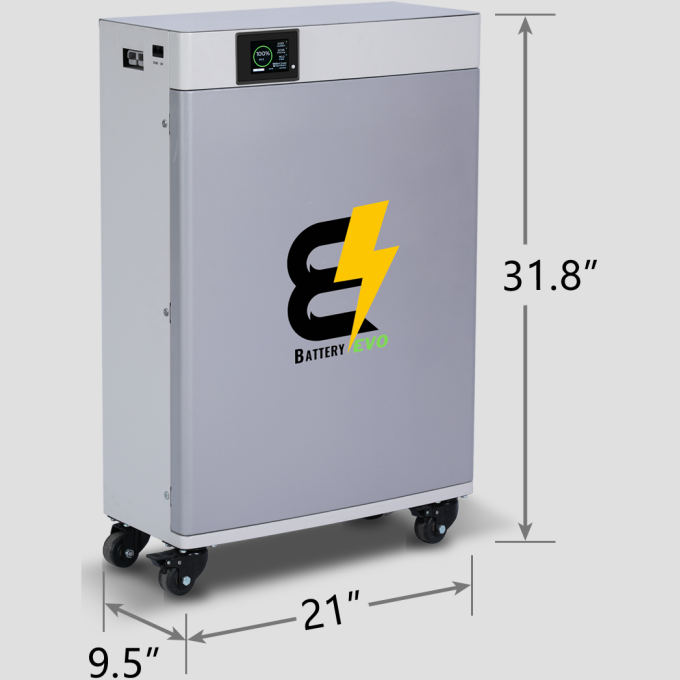

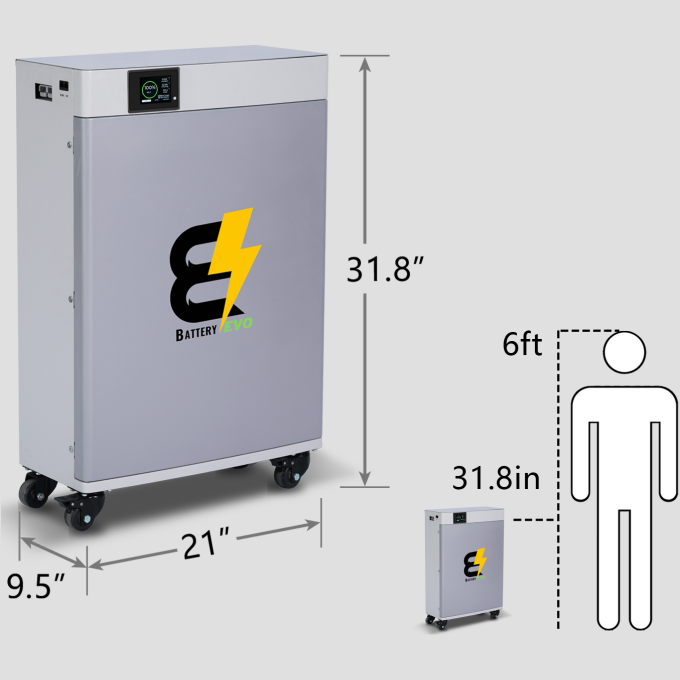

    Depth: 9.5in (241.3mm)
    Width: 21in (533.4mm)

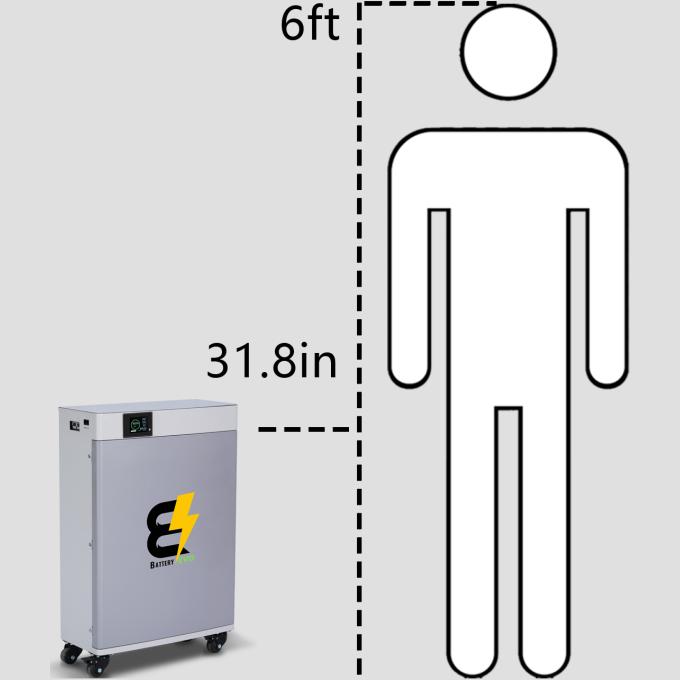

    Height: 31.8in (807.7mm)
    Safety Features: Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections)
    Max Connections: Up To (8) Parallel

    Resources & Download

    Battery Spec Sheet: View
