ATG-C01-32A (Hardwire/NEMA 14-50P/NEMA 6-50P)

WIFI&Bluetooth-enabled 32Amp/7.6kw smart EV charging station (Level 2 EVSE) with 18-foot cable

Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
Make a payment for charging by scanning the QR code with credit card, or redirect to the mobile app for login and processing
Precision measurement of power, energy, voltage & current.
Dynamic LED lights display WiFi connectivity and charging behavior
IK10 impaction resistant rating and tamper proof screws.
Weatherproof, dust-tight, polycarbonate casing
5-Year warranty

ATG-C01-40A (Hardwire/NEMA 14-50P/NEMA 6-50P)

WIFI&Bluetooth-enabled 40Amp/9.6kw smart EV charging station (Level 2 EVSE) with 18-foot cable

High charging speed, 40A / 9.6 kW
Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
Make a payment for charging by scanning the QR code with credit card, or redirect to the mobile app for login and processing
Precision measurement of power, energy, voltage & current.
Dynamic LED lights display WiFi connectivity and charging behavior
IK10 impaction resistant rating and tamper proof screws.
Weatherproof, dust-tight, polycarbonate casing
5-Year warranty

ATG-C01-48A Hardwire

WIFI&Bluetooth-enabled 48Amp/11.5kw smart EV charging station (Level 2 EVSE) with 18-foot cable

High charging speed, 48A / 11.5 kW
Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
Make a payment for charging by scanning the QR code with credit card, or redirect to the mobile app for login and processing
Precision measurement of power, energy, voltage & current.
Dynamic LED lights display WiFi connectivity and charging behavior
IK10 impaction resistant rating and tamper proof screws.
Weatherproof, dust-tight, polycarbonate casing
5-Year warranty

ATG-R01-32A 14-50 Plug in

WIFI&Bluetooth-enabled 32Amp/7.6kw smart EV charging station (Level 2 EVSE) with 18-foot cable

Up to 7x Faster Charging
Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
Precision measurement of power, energy, voltage & current.
Dynamic LED lights display WiFi connectivity and charging behavior
IK10 impaction resistant rating and tamper proof screws.
Weatherproof, dust-tight, polycarbonate casing
IK10: Resistant polycarbonate case
5-Year warranty

ATG-R01-40A 14-50 Plug in

WIFI&Bluetooth-enabled 40Amp/9.6kw smart EV charging station (Level 2 EVSE) with 18-foot cable

High charging speed, 40A / 9.6 kW
Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
Precision measurement of power, energy, voltage & current.
Dynamic LED lights display WiFi connectivity and charging behavior
IK10 impaction resistant rating and tamper proof screws.
Weatherproof, dust-tight, polycarbonate casing
5-Year warranty

ATG-R01-48A Hardwire

WIFI&Bluetooth-enabled 48Amp/11.5kw smart EV charging station (Level 2 EVSE) with 18-foot cable

High charging speed, 48A / 11.5 kW
Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
Precision measurement of power, energy, voltage & current.
Dynamic LED lights display WiFi connectivity and charging behavior
IK10 impaction resistant rating and tamper proof screws.
Weatherproof, dust-tight, polycarbonate casing
5-Year warranty

CNAC-32A*2-RGWB-BK01 (Hardwire)

WIFI&4G&Bluetooth-enabled 32Amp*2/7.7kw*2 smart EV charging station (Level 2 EVSE) with 18-foot cable

OTA Remote Firmware updates
7″ LCD screen
OCPP 1.6J Fully compliance CTEP Compliance
Enclosure Rating: NEMA Enclosure Type 4
Compatible with all EV & PHEV models
Easy Installation, Save 50% Installation Fee
CTEP Compliance
ISO15118 Communication Protocol
The input cable enters from the bottom or the back of the product. suitable for various installation scenarios

CNAC-40A*2-RGWB-BK01 (Hardwire)

WIFI&4G&Bluetooth-enabled 40Amp*2/9.6kw*2 smart EV charging station (Level 2 EVSE) with 18-foot cable

OTA Remote Firmware updates
7″ LCD screen
OCPP 1.6J Fully compliance CTEP Compliance
Enclosure Rating: NEMA Enclosure Type 4
Compatible with all EV & PHEV models
Easy Installation, Save 50% Installation Fee
CTEP Compliance
ISO15118 Communication Protocol
The input cable enters from the bottom or the back of the product. suitable for various installation scenarios

CNAC-48A*2-RGWB-BK01 (Hardwire)

WIFI&4G&Bluetooth-enabled 48Amp*2/11.5kw*2 smart EV charging station (Level 2 EVSE) with 18-foot cable

OTA Remote Firmware updates
7″ LCD screen
OCPP 1.6J Fully compliance CTEP Compliance
Enclosure Rating: NEMA Enclosure Type 4
Compatible with all EV & PHEV models
Easy Installation, Save 50% Installation Fee
CTEP Compliance
ISO15118 Communication Protocol
The input cable enters from the bottom or the back of the product. suitable for various installation scenarios

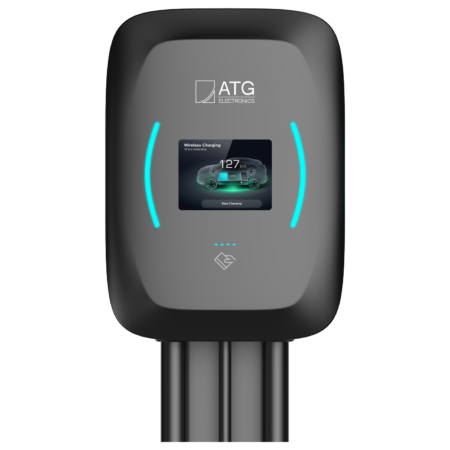

CNAC-80A*2-RGWB-BK01 (Hardwire)

WIFI&4G&Bluetooth-enabled 80Amp*2/19.2kw*2 smart EV charging station (Level 2 EVSE) with 18-foot cable

OTA Remote Firmware updates
7″ LCD screen
OCPP 1.6J Fully compliance CTEP Compliance
Enclosure Rating: NEMA Enclosure Type 4
Compatible with all EV & PHEV models
Easy Installation, Save 50% Installation Fee
CTEP Compliance
ISO15118 Communication Protocol
The input cable enters from the bottom or the back of the product. suitable for various installation scenarios

RSEVC-240V/48A*2-US-RGWB/C-WH02

11.5kW ×2 output via a 240V hardwired connection, SAE J1772 and optional NACS connectors with 18ft or 25ft cables, 10.1-inch touch screen with WiFi/4G communication, -30°C to 50°C, NEMA Type 3 and IK08 protection

Dual-Port High-Power Output – Provides up to 11.5kW ×2 simultaneous charging, supporting faster turnaround for multiple EVs.
Flexible Connector Options – Standard with SAE J1772 connectors, with NACS (Tesla) connectors optional, meeting the needs of different EV models.
Smart Charging Protocols – Supports OCPP 1.6J for networked charging management, RFID/NFC access, and POS payment integration for seamless user experience.
Interactive User Interface – Equipped with a 10.1-inch touch screen, ambient lighting, motion-sensing night light, and illuminated logo for enhanced visibility and intuitive operation.
TAA/BABA-Compliant Supply – Modular design meets TAA/BABA requirements, enabling up to 45% tariff savings for cost-effective deployment.
Optional Enhancements – Expandable features include a cable management system and integrated security camera for safer, cleaner, and more efficient site operation.
Certified Safety & Durability – Designed with comprehensive protection functions (overcurrent, surge, leakage, ground fault, overtemperature, etc.) and rated NEMA Type 3, IK08, ensuring reliable operation in harsh outdoor environments.
Convenient Payment Options – Compatible with credit card, RFID/NFC, and OCPP platform payments, offering hassle-free transactions for drivers.

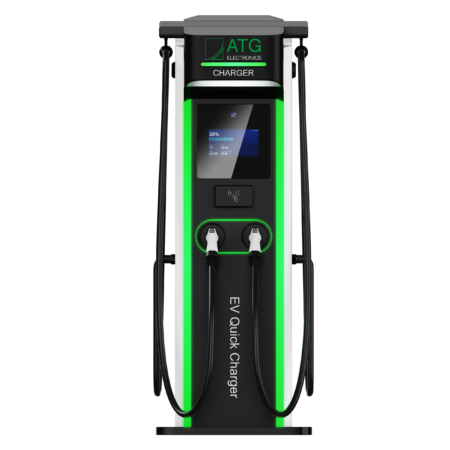

RSEVC-240V/80A*2-US-RGWB/C-WH02

19.2kW ×2 output via a 240V hardwired connection, SAE J1772 and optional NACS connectors with 18ft or 25ft cables, 10.1-inch touch screen with WiFi/4G communication, -30°C to 50°C, NEMA Type 3 and IK08 protection

Dual-Port High-Power Output – Provides up to 19.2kW ×2 simultaneous charging, supporting faster turnaround for multiple EVs.
Flexible Connector Options – Standard with SAE J1772 connectors, with NACS (Tesla) connectors optional, meeting the needs of different EV models.
Smart Charging Protocols – Supports OCPP 1.6J for networked charging management, RFID/NFC access, and POS payment integration for seamless user experience.
Interactive User Interface – Equipped with a 10.1-inch touch screen, ambient lighting, motion-sensing night light, and illuminated logo for enhanced visibility and intuitive operation.
TAA/BABA-Compliant Supply – Modular design meets TAA/BABA requirements, enabling up to 45% tariff savings for cost-effective deployment.
Optional Enhancements – Expandable features include a cable management system and integrated security camera for safer, cleaner, and more efficient site operation.
Certified Safety & Durability – Designed with comprehensive protection functions (overcurrent, surge, leakage, ground fault, overtemperature, etc.) and rated NEMA Type 3, IK08, ensuring reliable operation in harsh outdoor environments.
Convenient Payment Options – Compatible with credit card, RFID/NFC, and OCPP platform payments, offering hassle-free transactions for drivers.

RSEVC-480V/240kW/2-US-RGE/C-BK01

200-1000V DC wide-input fast charger with 208/480V AC support, delivering 60kW@208V/120kW@480V (100-250A), CCS1 connector, OCPP 1.6/ISO 15118 protocol, IP65/NEMA 3R

Wide Voltage Input – Seamlessly supports 200 – 1000V DC and 208/480V AC, enabling operation on existing commercial power without the need for grid expansion
High – Power Output – Delivers a maximum power of 60kW at 208V and 120kW at 480V, with an output current ranging from 100A – 250A to ensure rapid charging
Standard Connector – Equipped with the CCS1 charging connector, a widely – adopted standard for efficient and reliable charging
Smart Charging Protocols – Compliant with OCPP 1.6 and ISO 15118 protocols, facilitating smart charging management and seamless Plug & Charge functionality
Modular Design – Features a modular construction that meets BABA or TAA requirements, allowing for up to 45% tariff savings
Advertising Capability – Comes with a 35 – Inch Independent Advertising Display that supports OTA updates and customizable content, creating additional revenue streams</span
Convenient Payment Options – Integrated with a VPOS Credit Card Reader powered by Nayax, along with multiple payment methods like RFID card, Nayax POS, VIN code, QR code, and credit card for seamless transactions
Reliable Operation – Operates within a wide temperature range of – 30°C to 55°C, humidity below 95% non – condensing, and up to 2000m altitude, with a 3 – year warranty and Energy Star compliance for long – term reliability
