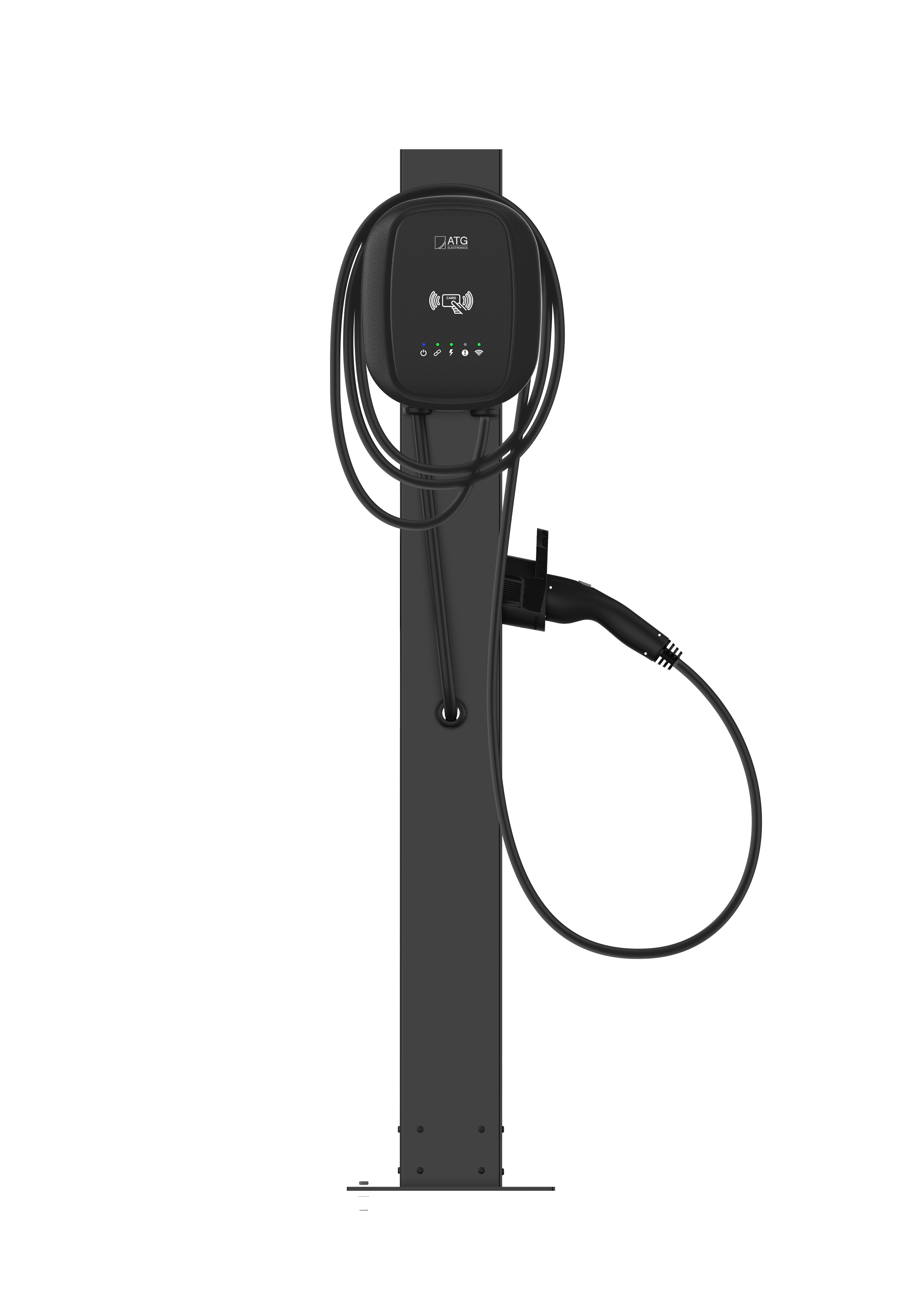

EV Charging Station Pedestal 5 Feet G1

5FT, Affordable, freestanding mount for ATG-C01 EV charging stations

  • Robust steel-construction stand designed for durability in all-weather conditions
  • Holds one or two ATG-C01 charging station
  • Save on installation with cost-effective ground-mounting
  • Robust steel-construction stand designed for durability in all-weather conditions
  • Save on installation with cost-effective ground-mounting
  • ATG- commercial charger not included
$539.50

Spec Sheets

Installation

PED-EVCS-G1-5FT

Durable and affordable, PED-EVCS-G1-5FT is the perfect ATG-C01 EV charger mounting solution for multi-unit dwellings, workplaces and small businesses. PED-EVCS-G1-5FT’s small footprint is ideally suited for locations with limited parking space and can include one or two ATG-C01 chargers, which are compatible with all electric vehicles.

PED-EVCS-G1-5FT is our most affordable commercial EV charging station mounting solution.

 •  Mount up to two stations on pedestal

•  Weather-resistant construction: anti-corro- sion powder coated

•  Concealed raceway: wiring is safely enclosed within the pedestal

•  Water-resistant access panel

•  Securely ground-mounted with four anchor bolts

•  Small footprint saves space and keeps area to minimum.

•  ADA compliant height

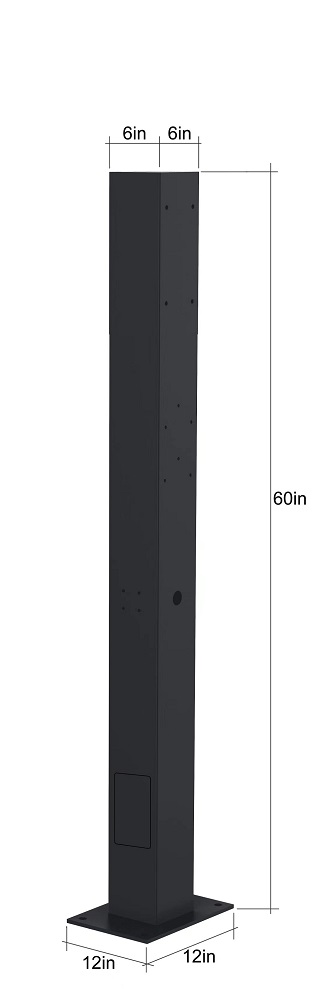

Specifications

Model No

Installation

Height

Width

Base

Weight

Charging Stations

Compliance

PED-EVCS-G1-5FT

Ground-based; anchor installation into concrete

60 in

6 ” x 6 ”

12”  x 12” x 0.24”

 95LBs

Mount up to 2 charging stations

Charging station and holster mounts are compliance with Americans with Disabilities Act Standards

(ADA)recommended charge connect height of less than 48” and greater than 24″

What you receive

In the package, you will receive:

  • PED-EVCS-G1 mount
  • Mounting screws
    •

ATG-C01 charging station not included.

Due to the variable makeup of ground materials and flooring, ground fasteners not included.
